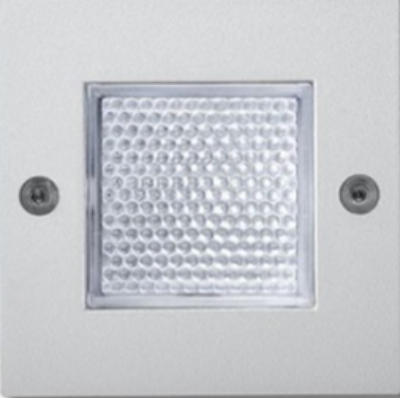

BEGA

FOOT LIGHT

OUTDOOR LIGHTING

22202K3

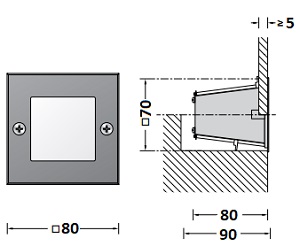

Recessed luminaire for glare-free lighting of floor spaces from a low mounting height.LED recessed luminaire without power supply unit luminair made of cast auminium, aluminium and stainless steel. IP65,IK10. DIMENSION: (W)80x(H)80x(D)80mm.

Specification

Power

2.3W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

42LM

Finishing

GRAPHITE

IP Rating

IP65

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

LUMASCAPE

INGROUND UPLIGHT

OUTDOOR LIGHTING

The LS793LED is a compact, shallow-depth inground luminaire for applications. DIMENSION: 112(D)*87(H)mm. requiring a very compact form factor, and features a 3W, 6W or 9W LED module with output similar to a 75W MR16. The compact size allows the luminaire to be used without appearing to dominate the architecture or landscape. For better control of light, a factory set tilt option is available, as well as dimming for single colour via Lumascape d5 driver technology. DIMENSION:

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The super warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 877 lm, with a 109.6 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP68; the total weight is of 0.678 kg. The power supply driver is not provided and is to be ordered separately.
