LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

GINKO 2.4_7W

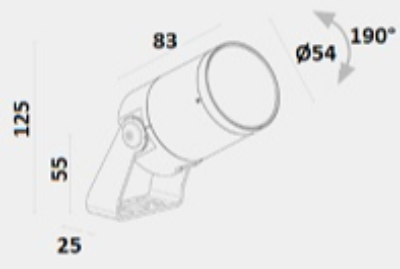

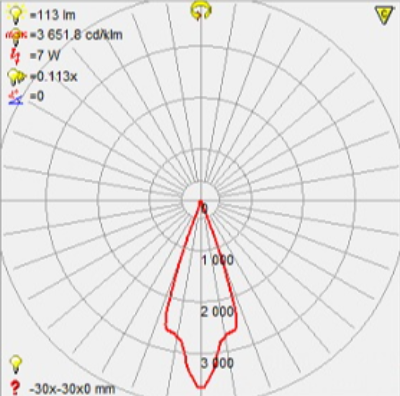

Ginko 2.4 projector for outdoor applications/surface mounted (ceiling, wall, ground, spike, strap). Power consumption: 7W/Power supply: 24Vdc/Lumen output at source: 608 lm (3000K, 7W, CRI 90)/Delivered lumen output: 113 lm (3000K, 36°, 7W, CRI 80)/1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)/LED colour: 2700K/Optics: optical range 9°—36°: optical system consisting of a plano-convex lens combined with a high-quality technical filter, adjustable with a mechanical focusing system for extreme flexibility of choice of light emission.CRI Colour Rendering Index: 80, >90. TIR lens/CRI Colour Rendering Index: 80/Operating temperature: -20°C — +45°C/Glow wire test: 960°/Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006/Appliance class: class III/Weight: 400 g/Dimensions: Ø54X83 mm/Energy efficiency class: F (light source) in accordance with EU 2019/2015.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

113LM

Finishing

JASPER GREEN

IP Rating

IP66

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with four wallwasher floor light elements; asymmetrical light distribution with precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

XAL

SURFACE TRACKLIGHT

INDOOR LIGHTING

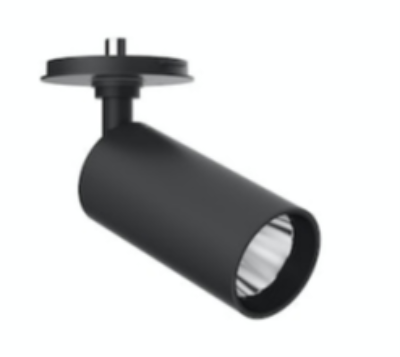

Surface mount track spotlight made of die-cast aluminium housing with 3PH universal adapter; classic style in elegant design. IP20

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

Double emission wall lights for outdoor application. The warm white LED light source with a double diffused light distribution is composed of 2 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.5 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

PLUS LIGHT TECH

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

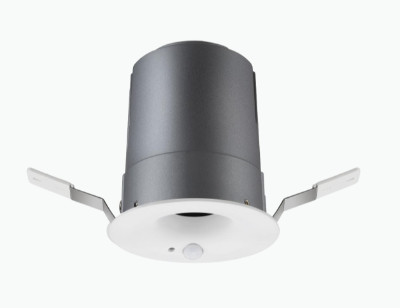

The adjustable downlight that highlight the desired subject or place and provide optimum illumination by being nondescript. The simplicity of its form provides smooth integration in architectural features. The luminaire come with 3 different colors metallic silver, black and white.
