Draco is the tallest member of our cylinder lighting family. Its strong long form utilises LEDil reflectors and Osram chips (with 1 and 2 Macadam's Ellipses colour consistency). Draco is available is in a full range colour temperatures and with integral control gear as standard.
Luminaire made of cast aluminium,aluminium and stainless steel; BEGA Unidure® coating technology; Colour graphite or silver; Crystal glass, white inside; Suitable for bollard tube 220 x 220mm; Silicone gasket;
LED pendant luminaire with direct light, made of high-quality extruded aluminium profile; black finish (RAL 9005) and chrome black reflector; GR6d-15 socket - reverse polarity protection and tool-free replacement without opening the; incl. illuminant DSD26-L120-830-BC as per ZHAGA Book 14; ON-OFF driver; 300-800mA; Dimension 1182mm x 45mm x 80mm; light color 3000K; good color rendering of CRI80; at least 80% of the luminous flux after a service life of 50000 hours L80B10; 5-year manufacturer's guarantee; Radiation characteristics with a beam angle of 80°; UGR<19 (up to 550mA); Luminance <1000cd/m² for gamma >= 65°according to EN 12464-1; Protection type of the housing IP20; Luminaire impact resistance IK05; can be installed as a single luminaire or as a continuous light band; 5 x 2.5 mm² through wiring; System luminous flux: 1895lm at 16W (118.4lm/W) @300mA (UGR<19), 2208lm at 18W (122.7lm/W) @350mA (UGR<19), 2455lm at 20W (122.8lm/W) @400mA (UGR<19), 2755lm at 22W (125.2lm/W) @450mA (UGR<19), 3097lm at 25W (123.9lm/W) @500mA (UGR<19), 3299lm at 27W (122.2lm/ W) @550mA (UGR<19), 3628lm at 30W (120.9lm/W) @600mA (UGR<22), 3884lm at 32W (121.4lm/W) @650mA (UGR<22), 4253lm at 36W ( 118.1lm/W) @700mA (UGR<22), 4449lm at 38W (117.1lm/W) @750mA (UGR<22), 4646lm at 40W (116.2lm/W) @800mA (UGR<22)
Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.
Recessed wall reading light made of aluminium housing with white powder coated finish. Luminaire head can be rotated 350° left and right and 90° up/down. Cut-out dia 55mm by 60mm depth hole for installation bracket and driver. Luminaire built-in switch when head pressed in, the light switched off. Color finishing available White, Black, Silver and Chrome.
Recessed pin-hole downlight made of aluminium housing with white powder coated finish. Black finish available upon request. Luminaire come with 2 different sizes, 6-8W in Ø63mm and 8-15W in Ø90mm.
This Black Glass Metal Outdoor is crafted with durable iron and glass, offering cozy warm white lighting for outdoor spaces. It features a traditional lantern design, IP65 waterproof rating, and a 3000K soft warm light ideal for all-season use. The product is battery-powered, rechargeable, and includes a poly-silicon solar cell for energy efficiency.
Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98725 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
ZERO FRAMING PROJECTOR 85 SURFACE_1463BC32-9730BWD010
Advanced, multi-functional LED surface mounted projector, tiltable vertically 0°-90° and rotatable horizontally 350°. With built-in bidirectional zooming lens with sharpness adjustability, and lens rotation. Adjustable shutters to re-frame the beam to the desired size and shape (circle, square/rectangle, or irregular four-sided shapes). Compatible with Gobo insertion for logo. High-precision optics for sharp outlines and a high degree of lighting uniformity.

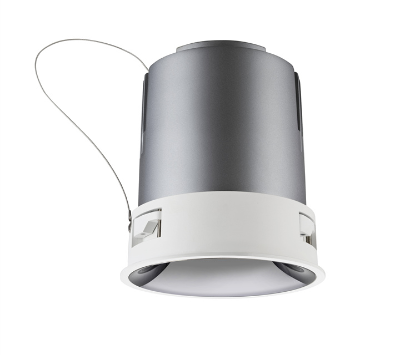

Round recessed mounted downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and matt reflector; LED 11W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire’s weight is approximately 220g; rotation 355° and pivot max. 30°; CCT 2700K with an LED Output of 1100lm; decent color rendering at an index of CRI80; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty.
Single emission projectors for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.612 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
