Lightplane 3.5 is a compact and streamlined luminaire with a channel that provides direct illumination. The luminaire is available with several LED lamping options including multiple outputs and CCTs, tunable white and colourchanging RGB+White. Driver in integral.

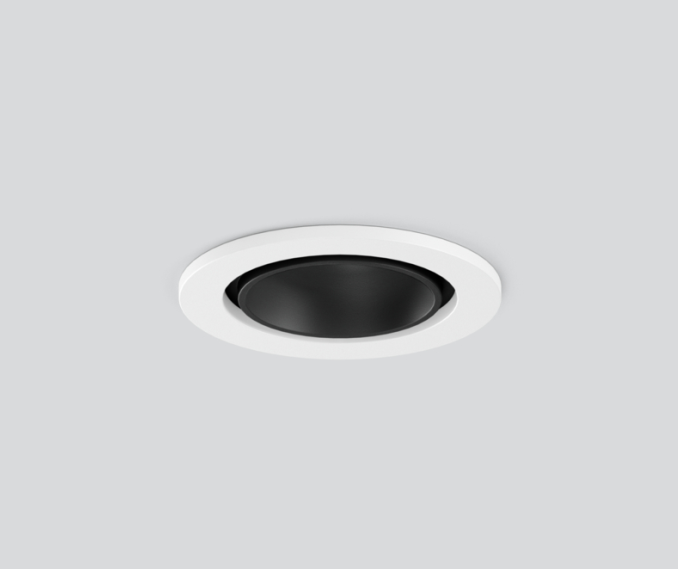

The Eyeconic Mini Trim Fixed is a recessed, fixed downlight with a Ø62mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
Minilinear: "Copper Free" Aluminium extruded EN AW-6060 with high resistance against corrosion, caps in "Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Miniround: "Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets (Minilinear). Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic
and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
ALPHA is an entirely new family of outdoor spotlights/floodlights engineered from scratch. The primary shapes and overall small dimensions make it possible to install ALPHA in most professional and residential lighting applications. High-quality polycarbonate optics provide accurate beam control and offer a wide selection of light distributions. ALPHA can be customized with accessories such as honeycombs, shields and various mounting solutions for poles and surfaces.
The Ribbon Go 5 FL family are flexible LED ribbons, which are reliable and multi-optional with comprehensive features, available in outdoor IP66 version, making them the perfect solution for a variety of applications, including linear, flexible, creative ambient projects, curved lighting and freeform applications. The ingress protection degree is IP66. DIMENSION: ( LxWxH ) (1000x12x4.5 )mm.
Linear miniaturised recessed luminaire with 2 optical elements for LED lamps - fixed optics. Despite the ultracompact size of the product, the patented technology of the optic system guarantees an efficient flow and a high level of controlled glare visual comfort. Main body with die-cast zamak radiant surface, version with perimeter surface frame. Metallised, thermoplastic, high definition Opti Beam reflectors, integrated in a set-back position in the anti-glare screen.
Surface mounted downlight, luminaire body made of aluminium housing with white powder coated finish. Reflector have chrome black, silver and white finish available. Black finish and honeycomb accessory available upon request.
Lightplane 1 Concave is a suspended, wall or surface mounted luminaire with direct, indirect or direct-indirect distribution. The fixture features arching, interior sides that lead to a slightly recessed lens within the channel. With a cross section dimension of just 50mm, the Lightplane 1 Concave body houses a LED driver integral to the channel creating a remarkably low-profile luminaire.
The Erden E8 is a high-powered, in-ground uplighter that combines
technology and performance in a modern form factor. Packed with features
including EasyGlow™ and CoolDrive™ thermal management technologies.
PowerSync™ allows for highly granular digital control via common protocols.
Available in white, color-changing and tunable white light engines. DIMENSION: 178(D)*350(H)mm.
Double emission ceiling lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 78 topled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of pmma. The ingress protection degree is IP40; the total weight is of 8.52 kg. The device features protection class I and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.
P66, Class I. Class II on request. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. One cable gland. Second gland for through wiring on request. Integral EC electronic converter, thermally separated. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. 1-10V, DALI Interface or Eco Step Dim® on request
