LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

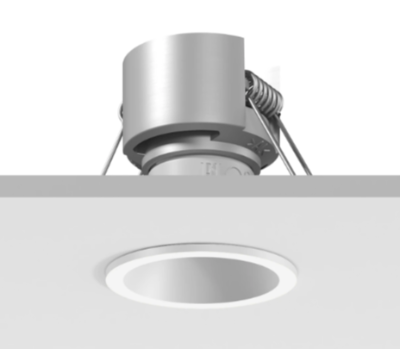

WARP_Q_90724W60

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

131LM

Finishing

WHITE

IP Rating

IP44

Color Rendering

CRI 80

Driver

DALI DRIVER

TRAXON

LINEAR LIGHT

OUTDOOR LIGHTING

The Allegro Linear 2.1 AC SW family is a slim-profile, AC-line powered highbrightness luminaire. The family is controllable via DMX512, and is available in four lengths, from 320mm to 1215mm. The simplicity of the luminaire’s topology means it can be easily daisy-chained to form long runs. Remote Device Management (RDM) circuits are built into each luminaire that enables extensive control and monitoring of the entire lighting installation.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

FORMALIGHTING

SPOTLIGHT

OUTDOOR LIGHTING

Accent spotlight with body and driver housing in cast aluminium, inclusive of toughened safety glass, weatherproof durable silicone gasket and external screws in stainless steel. Front cover is designed to avoid accumulation of dust and water. Fixture is available in 2 different sizes. PG7 cable entry. Tiltable vertically 0-180° and routable horizontally 0-350°.

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.612 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
