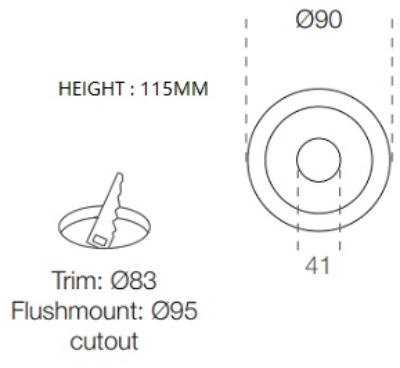

The Eyeconic Mini Trim Adjustable is a recessed, directional downlight with a Ø62mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. 360° rotation and 28° tilt. Part of a wide family range of fully modular luminaires.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket: 2 drilled holes Ø 7 mm, spacing 30‑40 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, integral driver (AC/DC), CRI > 85, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 89°, luminous flux: 3572 lm, wattage: 46 W, delivered lumens 78 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,025 m², dimensions: Ø 194 mm, width 124 mm, weight 3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Recessed luminaire with LED light source. Power supply not included. Fast Perfect pre-installation frame. To be ordered separately. Remote power supply to be installed in an accessible place. IP20.
