WE-EF

BOLLARD
OUTDOOR LIGHTING
114-9793
IP66/IP67. Class I. IK10. Marine-grade, all-aluminium construction. Pole section features galvanised steel reinforcement core. 5CE superior corrosion protection including PCS hardware. RFC™ Reflection Free Contour main lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control.

Specification

Power
36W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
3854LM
Finishing
ANTHRACITE GREY
IP Rating
IP66
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LIGHTFORMS
SURFACE MOUNTED LIGHT
INDOOR LIGHTING

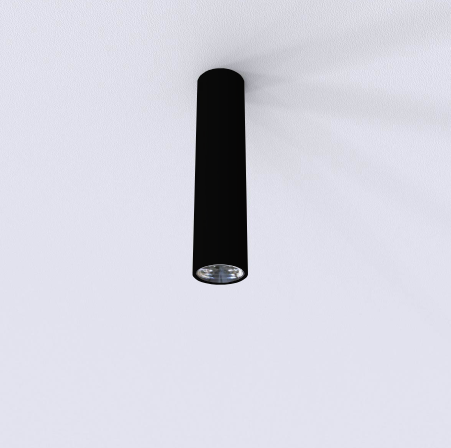

Draco is the tallest member of our cylinder lighting family. Its strong long form utilises LEDil reflectors and Osram chips (with 1 and 2 Macadam's Ellipses colour consistency). Draco is available is in a full range colour temperatures and with integral control gear as standard.
SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING
Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.
LINEALIGHT
WALL LIGHT
OUTDOOR LIGHTING
Single emission submerged for outdoor application. The natural white LED light source with a medium wide flood light distribution is composed of 12 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 3636 lm, with a 129.9 lm/W nominal luminous efficacy. The device body is made of stainless steel and features a steel finish, processed by means of brushing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 6 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 28 W. The power supply cable is included and features a 5 m length. The device features protection class III and can be wall lights or floormounted with an outer casing, code 83161 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LUCE & LIGHT
SPOTLIGHT
OUTDOOR LIGHTING

Ginko 1 . 4 Outdoor surface mounted projector light (ceiling, wall, ground, spike), housing made of ANTICORODAL 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe. Bracket in AISI 316L stainless steel, tumble finished and painted (painted version), body made of brass, produced entirely on a CNC lathe. Bracket made of brass.  Optics available: 8° - 28° . IP66, IK07.
