SPARK

Angular element for Minimal (frameless) flush with ceiling version profiles; including a Warm LED module. Microprismatic screen for controlled luminance emission UGR < 19 - 3000 cd/m2 (working lighting); screen set up for connecting several lengths by overlapping. Built-in DALI dimmable control gear. Pass-through wiring for continuous lines.

Having a remarkable exterior environment requires a superior lighting solution. The FL 1300 XT-2 is weatherproof and waterproof and created for areas, where flodding can be a risk and the lifetime and conditions will depend on such. The light generator is developed especially to control colour change via DMX. The light generator can be fitted with up to 30 mtr. of cable ending in remote DMX driver.

The in-ground uplighter range is designed to fulfill the demands of sophisticated lighting projects. The luminaires combine all crucial product advantages precise light distributions, perfect glare control, adjustable reflectors and shallow recess depth. Uplight 220 and 260 are equipped with the innovative Heat Slide mechanism which allows the optical system to be adjusted and aimed whilst the LED module remains connected to the luminaire housing. Thus efficient heat dissipation and a long lifetime of the LED is achieved. The luminaires are now available with innovative wall washer optics for uniform illuminaition from the bottom to the top of the facade.

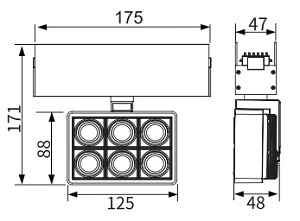

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 54° / 11°, luminous flux: 4225 lm, wattage: 48 W, delivered lumens 88 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 192 × 162 × 140 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
