LIGMAN

WALL LIGHT

INDOOR LIGHTING

NYB-30033-O-W30

Luminaire made of die-cast aluminium end-caps and extruded aluminium profile with powder coating. Single cable entry, stainless steel fasteners in grade 316- PMMA diffuser with Opal (UGR <19) and micro prismatic (UGR <13) options for better glare control. Up and down light distribution options. Passive thermal management and Integral control gear. Wireless control available through Bluetooth connection. Daylight and occupancy sensor options. Emergency module (1 or 3 hours) is available upon request with 3 options (BASIC, SELF-TEST, PRODALI). IP20.

Specification

Power

30W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2788LM

Finishing

ALUMINIUM

IP Rating

IP20

Color Rendering

CRI80

Driver

DALI DRIVER

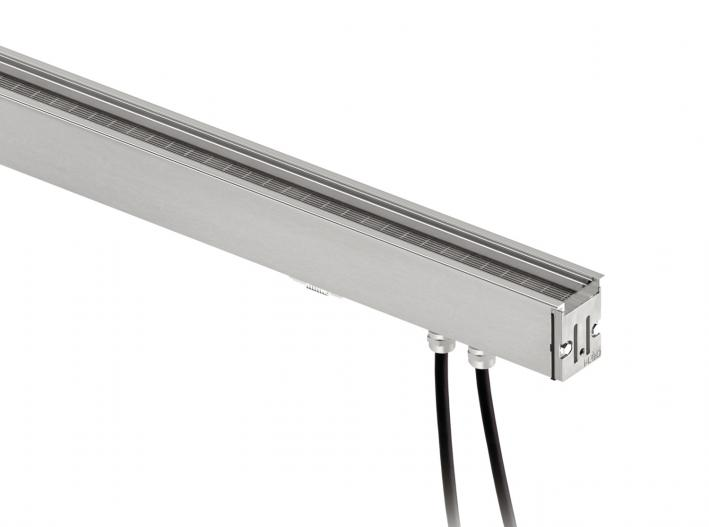

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99914 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

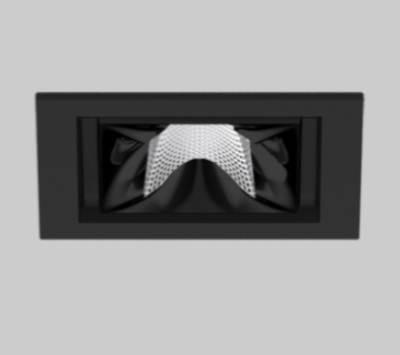

LIGHTFORMS

RECESSED LINEAR LIGHT

INDOOR LIGHTING

Lightplane 3.5 is a compact and streamlined luminaire with a channel that provides direct illumination. The luminaire is available with several LED lamping options including multiple outputs and CCTs, tunable white and colourchanging RGB+White. Driver in integral.

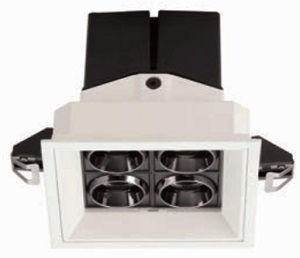

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.021 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 15 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98672 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
