LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

81594W25

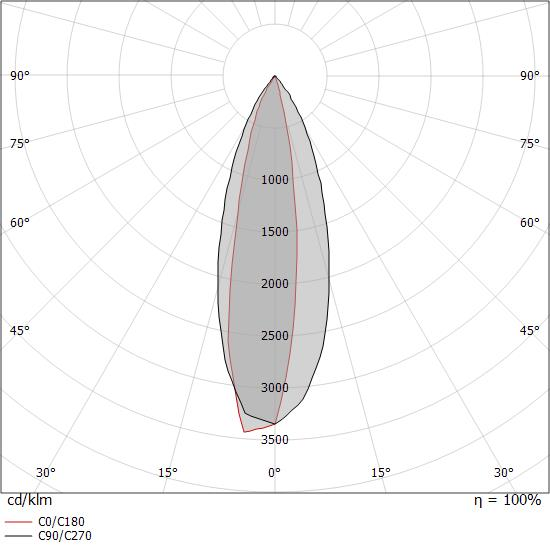

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 11 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98724 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

14W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

792LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

ACCLAIM

LED DOT

OUTDOOR LIGHTING

AL Dot is a direct view, RDM / DMX node, with a wired digital communication network. It is designed for low resolution graphic displays and individual dots of color. Available in a clear flat, diffused flat or diffused dome lens, it also features an internal DMX driver and all aluminum construction. It can be used indoor or outdoor and carries an IP66 outdoor rating.

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1724 lm, with a 132.6 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68;

SPARK

MAGNETIC TRACKLIGHT

OUTDOOR LIGHTING

Magnetic track system come with RECESSED mount or SURFACE mount version. Module available LED Diffused linear, LED Spot linear, LED Spot light etc. Input Voltage 48VDC

DIMENSION : Ø48*150*185mm
