LUMASCAPE

WALL LIGHT

OUTDOOR LIGHTING

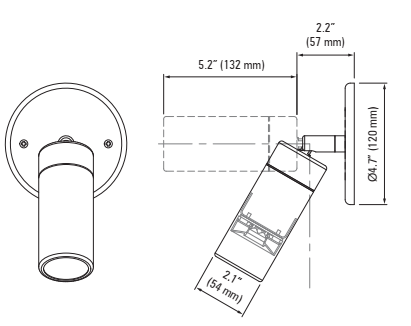

LS321LED - 6H6 ME

The LS321LED Pagoda is a compact, adjustable, direct or indirect accent used for grazing walls or other accent illumination tasks. The luminaire is constructed from either copper or powder-coated aluminium, providing a variety of aesthetic options. This luminaire is ideal for use in modern architectural designs, and features the Lumascape d5 driver technology for advanced dimming and control options.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

512LM

Finishing

BLACK

IP Rating

IP65

Color Rendering

CRI >80

Driver

ON/OFF DRIVER

LUCI

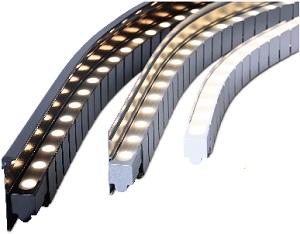

LED LIGHT BAR

OUTDOOR LIGHTING

Flexible wall grazing light to beautifully accentuate the curved element with vertical and horizontal bending Reduced unpleasant scalloping, applicable for a wide range of offset distances.Wall grazing light for organic design. Bendable Horizontal and Vertical in R500mm, adjustable bracket and Shield option. IP67.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.021 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 15 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

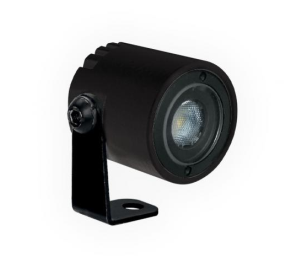

PROJECTOR LIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass. The ingress protection degree is IP65; the total weight is of 0.15 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
