LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

82313W08

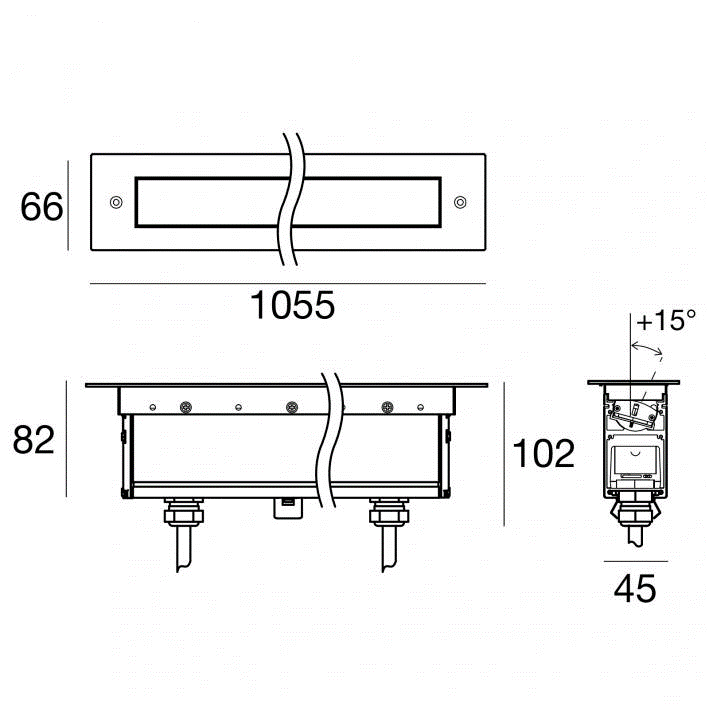

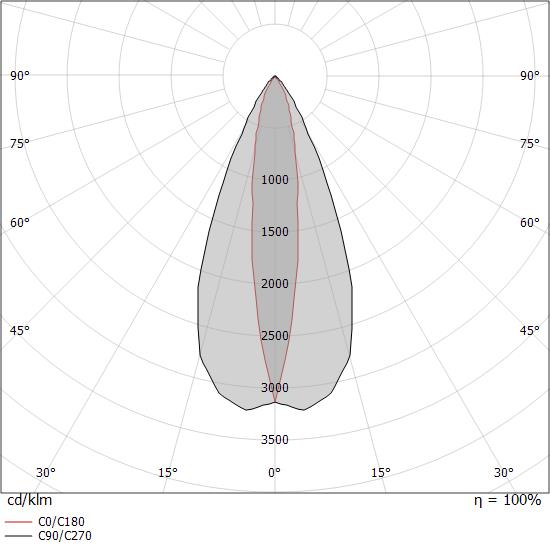

Single emission lines for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98673 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

41W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2977LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

WE-EF

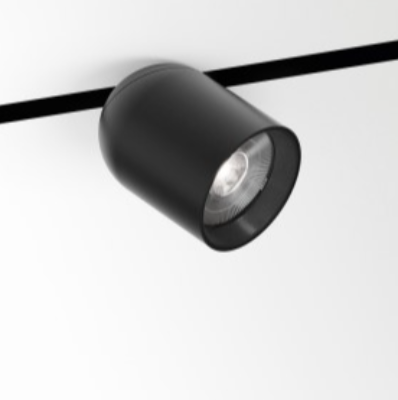

SPOTLIGHT

OUTDOOR LIGHTING

RGBW (white in 4000 K, 3000 K available on request)

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission recessed downlights for indoor application.. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.

DALITEK

CONTROL SYSTEM

12VDC/24VDC power input . Bridge for communication between RS485 networks and network connections. Allow one-way conversion between LDS code and DMX512 code.
