XAL

SUSPENDED LINEAR LIGHT
INDOOR LIGHTING
MINO 60 HIGH LUMEN_046-4234D38G

Luminaire housing made of extruded aluminium profile; light-tight end caps in aluminium; angular design; surface jet black powder coated; luminaire, ball proof version to DIN 18032-3 and DIN 57710 part 13 / VDE 0710 part 13; not suitable for indoor tennis centers (or halls with comparable ball sizes); LED light inset consisting of highly reflective lacquered aluminium for improved thermal management

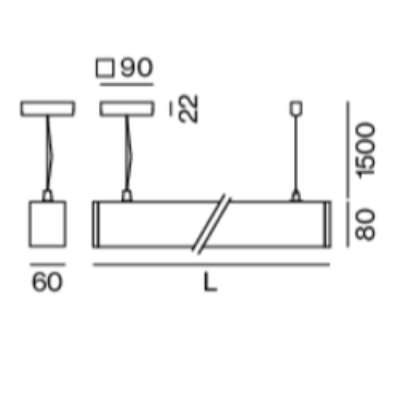

DIMENSION : L1000*W60*H80MM

Specification

Power
22W/M
Color Temperature
TW 2700K-6500K
Light Source Type
LED
Lumen Output
2230LM/M
Finishing
BLACK COLOR
IP Rating
IP20
Color Rendering
CRI 80
Driver
DALI DRIVER

See more

LINEALIGHT
SPOTLIGHT
INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 98; the source luminous flux is 3978 lm, with a 165.8 lm/W nominal luminous efficacy.

UNILAMP
RECESSED DOWNLIGHT
OUTDOOR LIGHTING

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission ceiling lights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.6 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING
Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.
