LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

90723W60

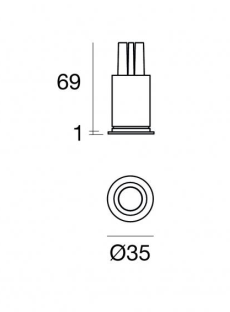

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

48LM

Finishing

BLACK

IP Rating

IP44

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

FORMALIGHTING

BOLLARD

OUTDOOR LIGHTING

Wall and pole mounted light system with body visor housing and ribbed LED dissipator in cast aluminium, inclusive weatherproof silicone gasket and concealed stainless steel screws. Light pole in extruded aluminium. The safety glass is fitted within the luminaire for easy cleaning. Easy installation via the included hard wire rubber cable and IP67 fast connector.

FLOS

FOOT LIGHT

OUTDOOR LIGHTING

Remote power supply 24V to be separately ordered. The fixture is prewired with 200mm cable and an IP connection kit. 3 version available (select the model suitable for your type of installation): - in concrete surface with recessed box to be ordered separately. - in plasterboard surface (surface thickness min 5mm-max20mm) model supplied with springs. - on solid surface no recessed box needed, the fixtures is directly glued on the surface (type of gluing to be select by the operator based on the

ELR

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed round downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre

XAL

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

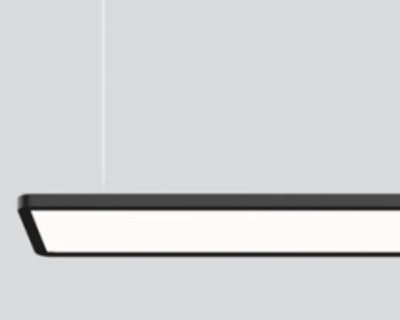

Rectangular luminaire is made of rounded edges in aluminium housing. Extremely flat (only 15mm) and slim (only 180mm) design. Modern shape in an elegant design for high demands. Surface black powder coated. Suspended luminaire with 1500mm cable suspension. With integrated tool-less suspension height adjustment; incl. transparent feed. Direct light distribution through LGP body (Light Guiding Prism); side coupled light directed downwards by laser engraving. Light control via highly reflective reflector material. Indirect light component with special PCBs for increased luminous flux and maximum ceiling illumination, separately controllable.

DIMENSION: (L)1180x(W)180X(H)34mm
