SPARK

Single emission lines for outdoor application. The warm white LED light source with a flood light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98672 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

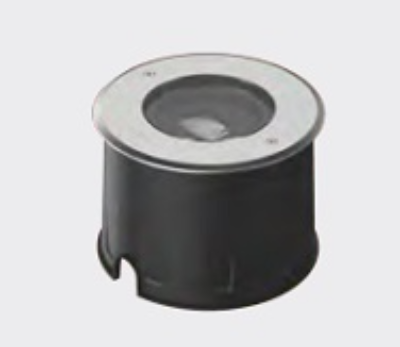

ATOM is a ground recess indicator light and is also suitable for under water light application. ATOM has been designed and manufactured at highest attribute. Utilizing CNC lathed stainless steel body presented exceptional aesthetic as well as sleek tough feeling. LED chips and lenses are from world renowned manufacturers. GFR polymer recess kit allows it to be installed in most extreme environment. Ensuring integrity of manufacture ATOM is supplied with a factory fitted pre-wide cable for ease of installation. The Anti-Humidity kit eliminate condensation inside the housing and prolong the life time of the luminaire. An optional IP68 connectors is recommended as an accessory for trouble free installation.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 24°, luminous flux: 419 lm, wattage: 6 W, delivered lumens 70 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,009 m², dimensions: Ø 100 mm, width 80 mm, weight 1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Luminaire made of copper, brass and stainless steel. Opal glass with screw neck. Silicone gasket. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz. Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK04. Protection against mechanical impacts < 0.5 joule r – Safety mark, c – Conformity mark.
