Product Detail | Bloxlimited

SPARK

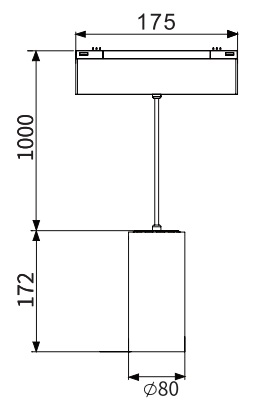

RECESSED MAGNETIC TRACK PENDANT

INDOOR LIGHTING

SPK5141R-12W-24D

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Honeycomb accessory available upon request.

Specification

Power

12W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

820LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI90

Driver

ON/OFF DRIVER

FORMALIGHTING

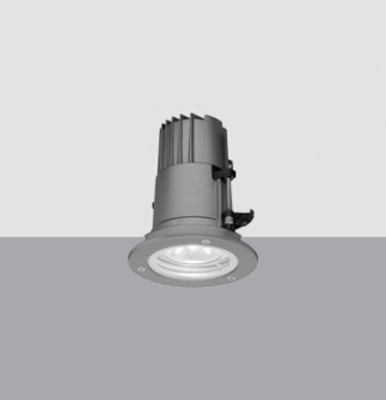

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

LED Built-in with body - High Power LED - Power LED. 3-step MacAdam

MEYER

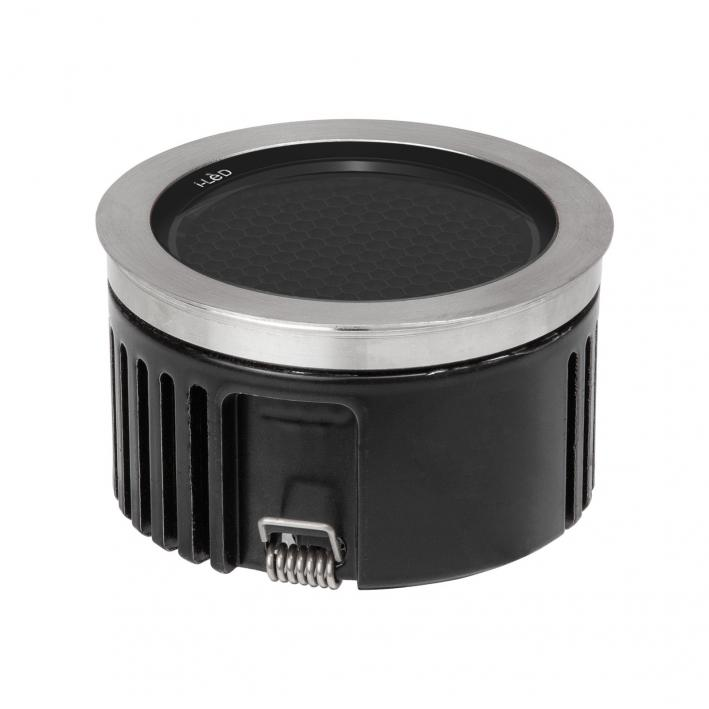

INGROUND UPLIGHT

OUTDOOR LIGHTING

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, lockable, tilt range: 0‑15°, lockable, 0,8 m cable H07RN‑F3G1, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 31°, luminous flux: 849 lm, wattage: 11 W, delivered lumens 77 lm/W, protection type IP68, protection class I, impact resistance IK10, dimensions: Ø 180 mm, width 152 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks.

EWO

POLE LIGHT

OUTDOOR LIGHTING

FA–Series Outdoor Pole light made of die-cast aluminium material and polyester powder coating finish. Anthracite finish color and safety glass. Luminaire available in Pole mount and Wall mount version. FO420 come with 0°-90° adjustable and horizontal pole mount. Suitable for Building area, high bay, street or walkway lighting application. IP66, IK08
