SPARK

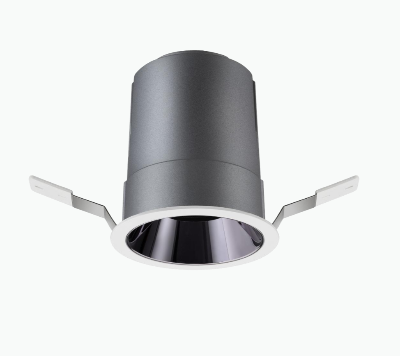

Housing: cast aluminium, black powder-coated, designed as heat sink, with connection cable L 850mm. 0°-30° tilt. Fixing ring: polymer, black, rotatable through 360°. Mounting ring: Polymer, white (RAL9002). Expanding spring fixing for ceiling thicknesses of 1-25mm. 2-pole terminal block. Includes control gear. LED module: high-power LEDs. Collimating lens made of optical polymer. Cover: Polymer, white (RAL9002).

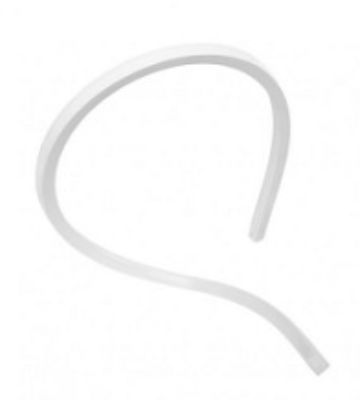

LED luminaire is 5.8mm thickness with dot-free light emitting surface. Custom lengths available in every 25mm increment, up to 1508mm. Selectable between both and one side cable feed, open end or connector.

The pendant luminaire SIGN DIVA DANCER PLAY from the familiy SIGN consists of aluminum. With 3 powder coated options 15625 colour combinations can be achieved. The ballast is integrated and allows for an operation with 220-240V (50/60Hz). SIGN DIVA DANCER PLAY (# 410-4732) is dimmable via BUS. The luminaire with direct illumination and corresponds to protection class SK1 at IP20. Multiple applications possible due to comprehensive adjustment options. Rotability is 170°, additionally is SIGN DIVA DANCER PLAY adjustable by ±50° and 90° tiltable (see product drawing).

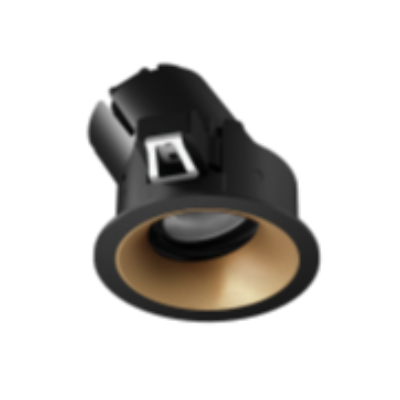

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.048 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
