Product Detail
Home Products Detail

Products

LINEALIGHT

SURFACE TRACKLIGHT
INDOOR LIGHTING

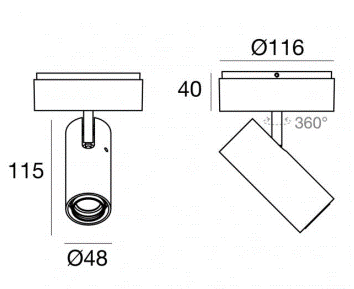

82366W15

Single emission ceiling lights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
15.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
977LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

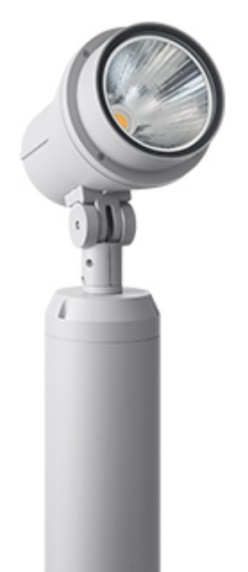

MEYER
SURFACE SPOTLIGHT
OUTDOOR LIGHTING

All exterior parts are stainless steel, tempered high efficiency safety glass, anti‐reflective coating from 1 side, silicon gasket, with 2 stainless steel screws, mounting bracket. Tilt range: 185°, highly efficient faceted rotationally symmetrical reflector, Constant current control (48 V DC), CRI > 80, service life L90/B10 > 50.000 h, Beam angle (fwhm): 59°, luminous flux: 547 lm, wattage: 8 W, delivered lumens 68 lm/W, IP65, IK08, weight 0.8 kg


XAL
WALL LIGHT
INDOOR LIGHTING

Rectangular wall surface mounted multi-uplight made of aluminium; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface black powder coated; equipped with four light insets; high quality reflector with micro-faceted, aluminum-vaporised surface; homogeneous wall or ceiling illumination through uniform light distribution; passive cooling of the LEDs through improved heat sink geometry;

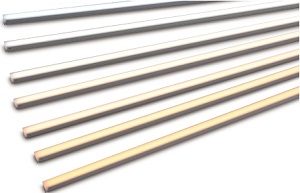

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99913 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
TRACKLIGHT
INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 98; the source luminous flux is 1482 lm, with a 114.0 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg.
