SPARK

Rectangular luminaire is made of rounded edges in aluminium housing. Extremely flat (only 15mm) and slim (only 180mm) design. Modern shape in an elegant design for high demands. Surface black powder coated. Suspended luminaire with 1500mm cable suspension. With integrated tool-less suspension height adjustment; incl. transparent feed. Direct light distribution through LGP body (Light Guiding Prism); side coupled light directed downwards by laser engraving.

Luminaire made of copper, brass and stainless steel. Opal glass with screw neck. Silicone gasket. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 2 fixing holes ø 5.5 mm · 70 mm spacing, 1 cable entry for mains supply cable up to ø 10,5 mm max. 3 × 1,5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz. Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water. Impact strength IK04. Protection against mechanical impacts < 0.5 joule r – Safety mark, c – Conformity mark.

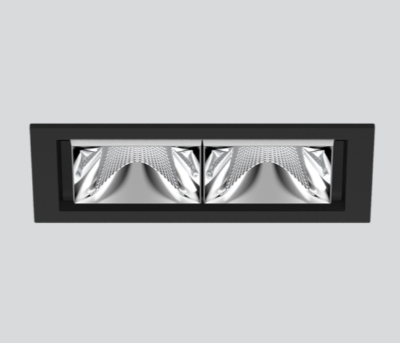

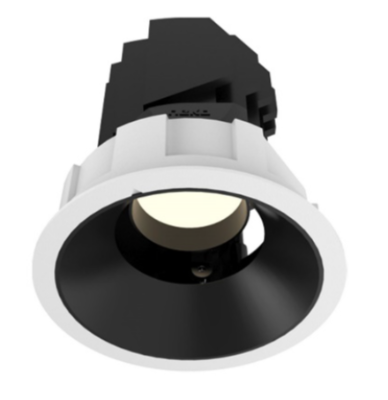

Recessed adjustable downlight luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

PURE S

PUS1-9271515F-WW

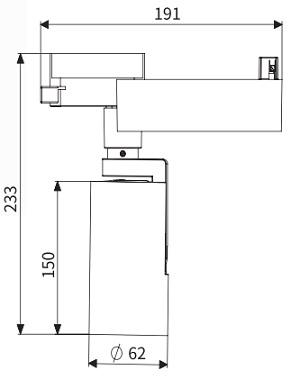

Tracklight round made of die-cast aluminium for 3-Phase Track System with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 15W; measurements tracklight Ø72mm x 140mm; rotation 355° and pivot max. 90°; CCT 2700K with a System Luminous Flux of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 15° beam angle; degree of housing protection IP20
