Products

RCL

TRACKLIGHT
INDOOR LIGHTING
DREX2.0858.MP

DRX2 2700K-5500K LED (25W for light source) compact spotlight for Monopoint with 20°-52° optic. Manufactured from A380 aluminium and glass-filled polycarbonate. Finished in white (RAL 9010). Voltage is 100-240V 50/60HZ. Luminaire has highperformance colour rendering of 90+ CRI. Luminaire can be rotated, with +/- 165° movement through the pan axis and +/- 110° through the tilt axis, at a resolution of less than 1° in either axis. Movement and dimming is controlled using RCL Control iOS App. Recording and recalling of scenes as standard.

Specification

Power
37W
Color Temperature
TW-2700K-5500K
Light Source Type
LED
Lumen Output
1940LM-1640LM
Finishing
WHITE
IP Rating
IP20
Color Rendering
CRI 90
Driver
DIMMABLE DRIVER

See more

LUCENT
ADJUSTABLE DOWNLIGHT
OUTDOOR LIGHTING
Edge60 accent downlight with Ø26mm black Edge aperture and supplied with a separate installation kit with overlap flange for finished ceilings. Available in both white or black finish as standard. This product can accommodate the LED35 family of modules.

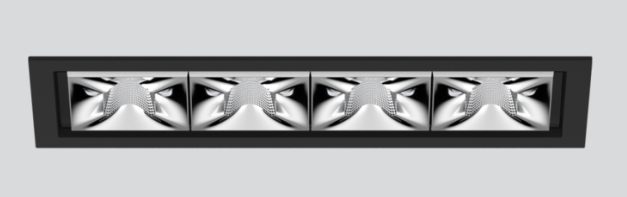

LINEALIGHT
LINEAR LIGHT
OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a elliptic flood (20°÷29°) x (41°÷60°) light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1164 lm, with a 157.3 lm/W nominal luminous efficacy. The device body is made of aluminium alloy 6060 and features a anodised aluminium finish.

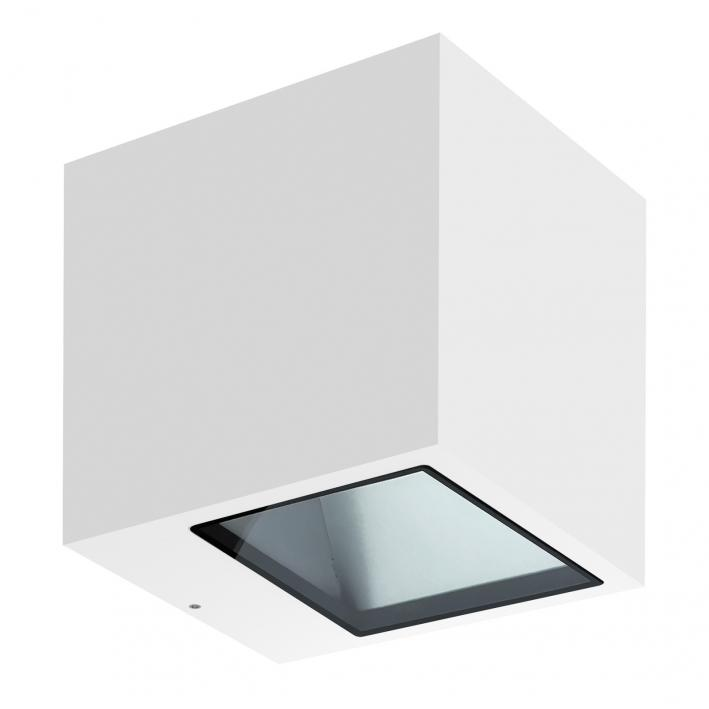

FORMALIGHTING
SPOTLIGHT
OUTDOOR LIGHTING
Recessed/surface luminaire with light housing in aluminium extrusion inclusive of with toughened safety glass, weatherproof durable silicone gasket and external screws made of stainless steel. Ring and back plug cover in cast aluminium. Base and bracket in cast aluminium. Front cover designed to avoid accumulation of dust and water. Ceiling installation via clamping wings for ceiling thickness 1 to max.30mm. Surface version tiltable vertically 0-140° and rotable horizontally 350°, inclusive of mechanical locking system to ensure aiming stability.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.24 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 76 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
