SPARK

Luminaire made of copper and stainless steel, Opal glass with screw neck. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 3 fixing holes ø 8.5 mm. Angle 120° · Pitch circle ø 100 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz, DC 176-264 V, DC Start ≥ 198 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, Impact strength IK03. Protection against mechanical impacts < 0.35 joule, r – Safety mark, c – Conformity mark.

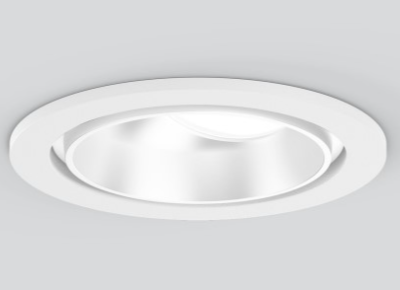

LASER EVO new-generation of recessed downlight offer high optical performance, maximum efficiency, and an integrated design for various architectural environments. Recessed mount designed for easy and precise installation in a Ø40 mm mounting hole. Front element with conical profile baffle "Cone". Fixed IP65 version, ideal for humid environments.

Single emission downlights for indoor application. The warm white LED light source is composed of 6 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.24 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 65 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Light modules can easily be positioned and repositioned, thanks to the magnetic connection between module and profile. This allows for an easy adaptation between light and room setting.Magnetic modules to be used with the SPLITLINE and SHIFTLINE profiles.Apart from personal dimming preferences, the light within the magnetic profiles can also be controlled by sensors, based on daylight or presence detection.
