Products
XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L451B0B21 090-7L4020W

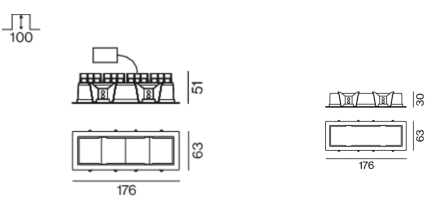

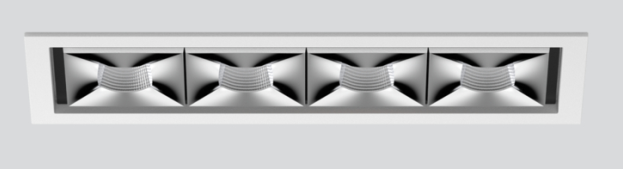

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due
to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling

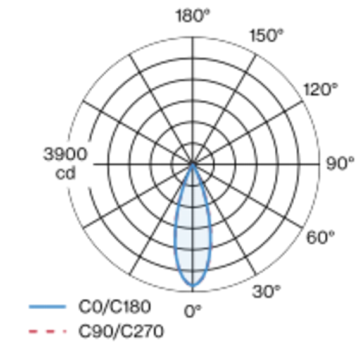

thickness of 2-25 mm; equipped with four medium round light elements; symmetrical light distribution with
precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised
surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance
above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000
K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non
dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed
separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
Specification
- Power
- 13.9W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 1200LM
- Finishing
- WHITE
- IP Rating
- IP20
- Color Rendering
- CRI >90
- Driver
- ON/OFF DRIVER
