IGUZZINI

RECESSED LINEAR LIGHT

INDOOR LIGHTING

QB20+QA84.01

LED module set up for housing in initial or intermediate system profiles. Down emission - Low Output version for General Light profiles (with opal diffuser screen). DALI dimmable control gear integrated in the luminaire. Extruded aluminium heat sink; high emission yield flux enhancer. Warm 3000K LED

Specification

Power

7.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

950

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 80

Driver

DALI DRIVER

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

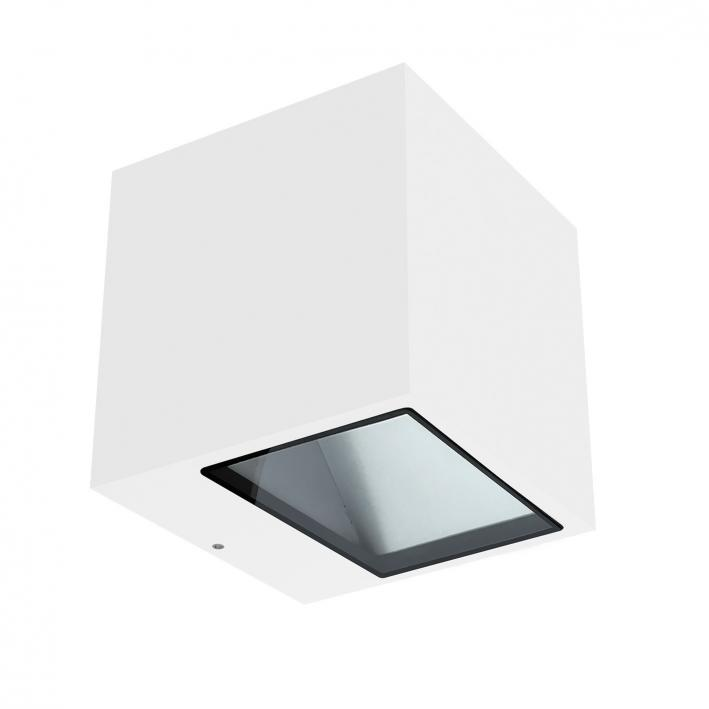

Single emission wall lights for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 12 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.170 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights-mounted with an outer casing, code 98111 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.612 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

LINEALIGHT

WALL LIGHT

INDOOR LIGHTING

Single emission wall lights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.5 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
