LINEALIGHT

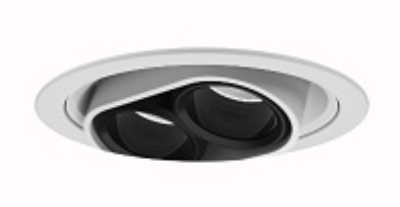

Recessed adjustable type downlight, aluminium housing, different types of beam angle.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket: 2 drilled holes Ø 7 mm, spacing 30‑40 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 35°, luminous flux: 2385 lm, wattage: 46 W, delivered lumens 52 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,025 m², dimensions: Ø 194 mm, width 124 mm, weight 2.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 322 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 3000 lm, with a 103.4 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

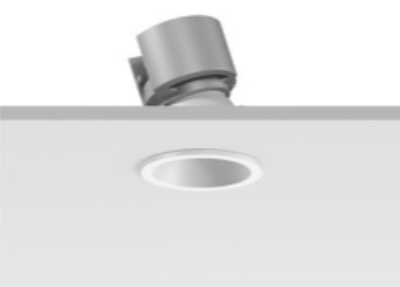

Spotlight designed to use LED lamps and a Wide Flood optic. The optical assembly and base is made of EN1706AC 46100LF aluminium alloy and subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer).Double adjustability allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane.
