SPARK

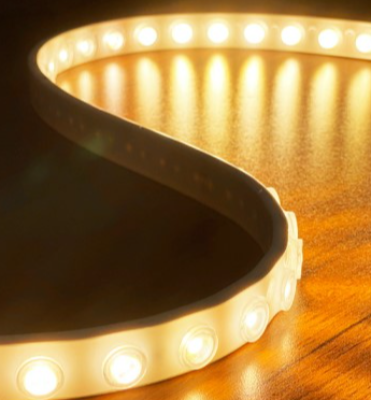

LED Lens Strip small in size and light in weight. SMD2835 in 48LEDs/M with slim thickness of 1.2mm. Various beam angle 30°, 45°, 60° and 20°x45°. Cutting length 125mm. DC24V

DIMENSION : L1000*W20*H9.5mm

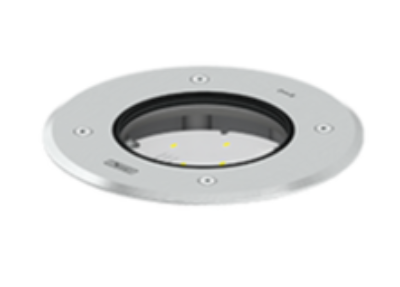

DOT family is a range of small recessed wall luminaires with LED light sources. The glare-free cover enables DOT to be installed where comfortable illumination is required. Fitted with world renowned LED manufacturer DOT is highly efficient with low energy consumption. DOT is available in four different design with interchangeable front covers in both square and round shapes. The very small and shallow housing allow the installation of the fixtures in wall or step that have limited recessing depth. DOT is regularly used to illuminate stairways and pathways where directional low level light is preferred.

Die-cast aluminium housing. Pre-treated before powder coating ensuring high corrosion resistance. 5.5 mm thick front ring in grade 316 stainless steel. Single cable entry, through wiring upon request. Stainless steel fasteners in. Recessing box in high-density polyethylene is included. Suitable for drive-over with a maximum load of 2000 kg. Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 50 km/h. Load is transferred by the housing to the foundation. The distance between the floodlight and the illuminated surface should be at least 0.5 m
