XAL

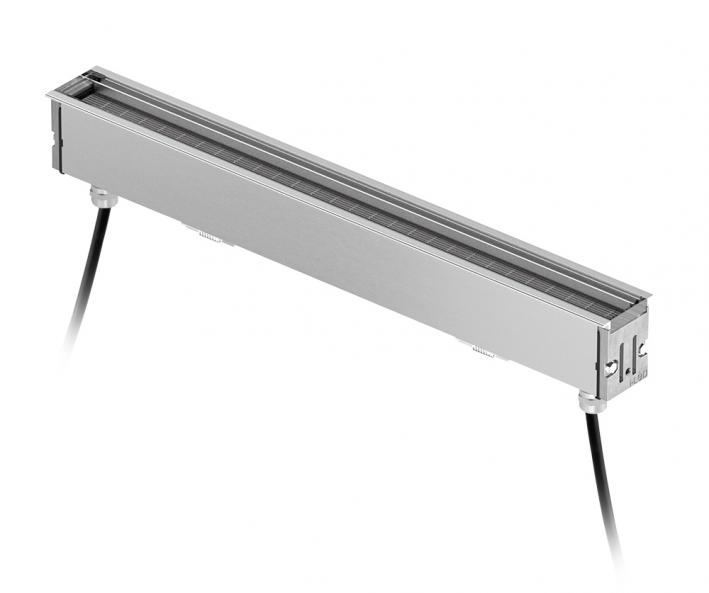

Single emission led strip for outdoor application. The warm white LED light source with a diffused light distribution is composed of 132 topled LEDs. The device body is made of technopolymer and features a grey finish; the diffuser is made of pu. The ingress protection degree is IP67; the total weight is of 2.015 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1(M)x0.25 m + 1(F)x0.25 m length. The device features prot

Edgeless luminaire · Photometric cover: Opal (PMMA) · "KORONA FRAME" ·

"MATTER"- Standard · 3-pole terminal block · 240 Volt, 50/60 Hz · Direct light

colors: optionally 3000K or 4000K. · LED board coated with high-reflective material

· MacAdam: 3 · 50,000 hours lifespan · Flicker-free operation with suitable electronic

ballast · Light source can be replaced by professional staff. · IP protection type IP20 ·

Electrical Protection Class 1 · complies with EN 60598-1 · · · · · · · · · · Height: 85 m

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 20 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), DIMENSIONS: (L×H×W): 152 × 120 × 152 mm.
