LUMASCAPE

FLOODLIGHT

OUTDOOR LIGHTING

QUADRALUX_Q8_LS9180_10Dx40D

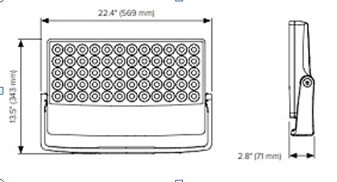

A very-high powered architectural grade spotlight that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Lighting professionals now have greater creative flexibility with the choice of designer lens options, which provides superb color-over-angle consistency and blending of colors even at close blending distances. Standard LED options are also available for exceptional reach.DIMENSION: 569(L)*71(W)*343(H)mm.

Specification

Power

150W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

7630LM

Finishing

ALUMINIUM

IP Rating

IP66

Color Rendering

CRI80

Driver

ON/OFF DRIVER

NEKO

LINEAR DOWNLIGHT

INDOOR LIGHTING

FUSION Linear profile with two Accent Light (AL300) inserts, one General Light (GL600) insert and ON-OFF driver as surface mounted; white profile channel (RAL 9016) and black reflector; LED 37W; measurement 1200mm x 50mm; CCT 3000K with an LED Output of 4000lm; high colour rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<19); degree of housing protection according to DIN EN 60529 (IP20)

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a chalk white finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.13 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0,17 m length. The device features protection class III and can be ceiling-mounted with an outer casing, code 98502 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

NEKO

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Round recessed downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and matt reflector; System Power 28W; measurements Ø110mm x 157mm; ceiling cutout of Ø100mm with a narrow mounting trim; ceiling thickness 1-25mm; rotation 355° and pivot max. 30°; CCT 2700K with a System luminous flux of 2000lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty;

ECOSENSE

FLOODLIGHT

OUTDOOR LIGHTING

RISE is a system of beautifully designed outdoor rated luminaires that provide efficient and powerful light using the latest in LED technology. RISE F080 single is a powerful and compact LED light fixture, delivering up to 1170lumens, that can be used in spot, accent, landscape and floodlight applications. Its unique MARCO lock feature allows for full 180 degree tilt and 360 degree pan aimability using only one tool. DIMENSION : W63.5*H131.8*L263.72MM
