Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket: 2 drilled holes Ø 7 mm, spacing 30‑40 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SCDM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 33°, luminous flux: 1592 lm, wattage: 26 W, delivered lumens 62 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,016 m², dimensions: Ø 148 mm, width 100 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

RISE is a system of beautifully designed outdoor rated luminaires that provide efficient and powerful light using the latest in LED technology. RISE F170 QUAD is a unique configuration that groups 4 RISE F170 singles allowing you to quadruple your lumen power, delivering up to 17,800LM. This unique fixture can be used to powerfully light one object or aimed separately. Allowing you to illuminate multiple applications. This powerful and compact LED light fixture can be used in spot, accent, landscape, architectural and floodlight applications. Its unique Marco™ lock feature allows for full 180° and 360° pan aimability of each fixture head using only one tool.

Controllable recessed adj downlight come in zoomable beam either 10° - 36° OR 15° - 60° BEAM ANGLE. Color temperate available 2700K, 3000K, 3500K, 4000K, Tunable 2700K-6000K control via 0-10V, DALI or DMX512 system. 5% - 100% brightness change. CRI 90, IP20

DIMENSION : Ø196*H185MM

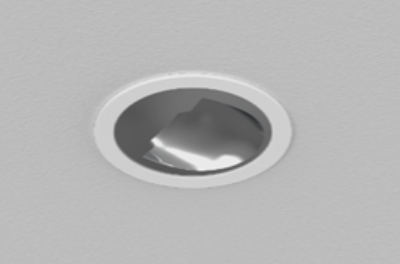

Round recessed luminaire with contact frame. Super Comfort fixed version: the LEDs are set a long way back to minimize glare and guarantee a high level of visual comfort...
