LUMASCAPE

INGROUND UPLIGHT

OUTDOOR LIGHTING

TERRALUZ TE5_LS3150_30D

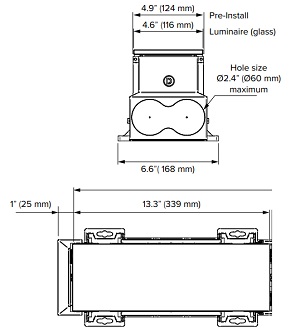

A high-output linear in-ground brings together the best technology in a simple yet stylish linear form factor with bezel-less edge-to-edge glass finish. With a ±15º tilt adjusment, the Terraluz TE5 is a versatile, highperformance luminaire. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ suits both highly granular DMX/RDM control requirements and standard white light dimming via common protocols. Fixtures can be installed endto-end for continuous linear lighting. Available in white, color-changing and tunable white light engines. DIMENSION: 339(L)*124(W).

Specification

Power

12W/330MM

Color Temperature

3000K

Light Source Type

LED

Lumen Output

7167LM

Finishing

ALUMINIUM BLACK

IP Rating

IP66

Color Rendering

CRI80

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99762 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

Single emission submerged for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 3 powerled LEDs. The lumaniare body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68, IK10.

NEKO

RECESSED DOWNLIGHT

INDOOR LIGHTING

Round recessed ceiling downlight made of die-cast aluminium with white powder-coating finish (RAL 9016); Phase Dim Driver; System Power 11W; measurement Ø82mm; ceiling cutout of Ø68mm with a narrow mounting trim; luminaire's height is 46mm; pivot max. 30°; CCT 3000K with a System Luminous Flux of 750lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient BRIDGELUX LED Chips; 5 years warranty; degree of housing protection IP44 on the visible part of the product one installed; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician
