LINEALIGHT

CEILING LIGHT
INDOOR LIGHTING
82264W30

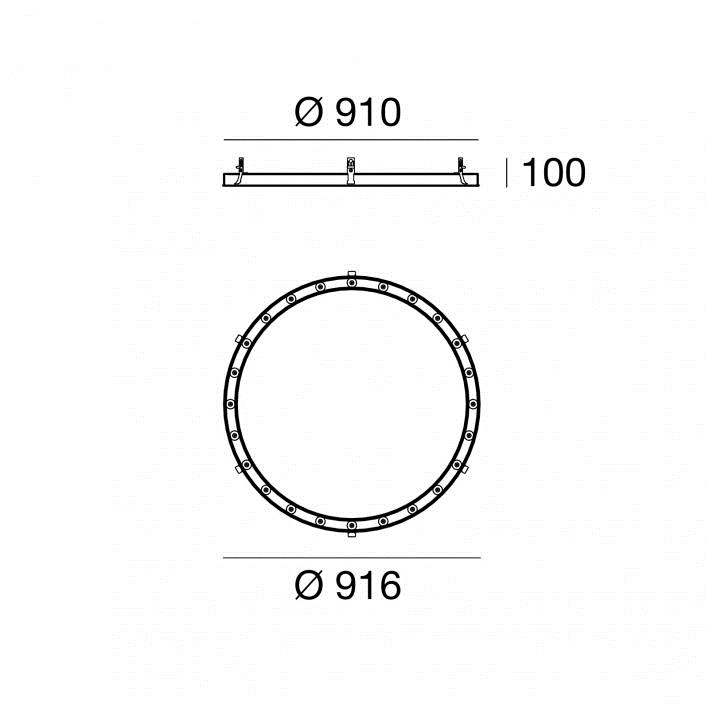

Single emission ceiling lights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 24 powerled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 4.3 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.1 m length. The device features protection class III and can be ceiling-mounted, with a 912 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
46W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
3944LM
Finishing
WHITE
IP Rating
IP40
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with four medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
SPARK
LINEAR GRAZER
OUTDOOR LIGHTING

RWW24 is a wallwasher luminaire series of extremely compact dimesnsions with integral 24vdca driver. As well as individual luminaires there is also a modular system availabe for creating contionous lines with barely any shadow between the section. The very slim cros section allows between the section. The luminaires are areavaible with wall washer optic or in asymmetrical distribution.

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
MAYTONI
BOLLARD
OUTDOOR LIGHTING

The rectangular elongated housing silhouette, complemented by a strip of light on one side, provides subtle yet effective illumination while maintaining a visually unobtrusive profile. Available in three housing sizes with a minimalist design, these luminaires can be arranged in compositions to serve as primary lighting or to create specific accent lighting effects. Suitable for installation on both unpaved and rigid concrete surfaces, offering flexibility in placement.
