LUMASCAPE

FLOODLIGHT

OUTDOOR LIGHTING

QUADRALUX_Q2_LS9140_45D

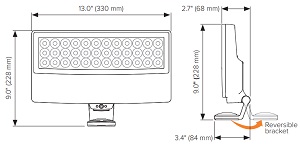

A medium size architectural grade spotlight that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Lighting professionals now have greater creative flexibility with the choice of a designer lens option, which provides superb color-over-angle consistency and blending of colors even at close blending distances. Standard LED options are also available for exceptional reach. DIMENSION: 235(L)*68(W)*228(H)mm.

Specification

Power

50W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

5670LM

Finishing

ALUMINIUM

IP Rating

IP66

Color Rendering

CRI80

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98671 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

XAL

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Round recessed spotlight in die-cast aluminium housing and surface gold dust. 360° rotatable and 30° tiltable. Installation without tools in mounting set due to patented ball catch system; round installation housing; with trim traffic white; for installation in soft acoustic ceilings; suitable for ceiling thickness of 25-40 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows;

FORMALIGHTING

RECESSED DOWNLIGHT

INDOOR LIGHTING

Moto Rino is intelligent due to their inbuilt memory, allowing them to instantly recall pre-recorded position, color temperature, beam angle, and dim level settings previously recorded via the CASAMBI™ control app. Available in standard and backlight versions, trim and trimless. In the Backlight version, the spotlight and backlight can be controlled independently, so an ambient effect can be easily created. Two DC motors drive the movements of the fixture, which is tiltable vertically up to 30° and horizontally 330° Pan. The color temperature avaiable 2700k,3000k,3500k and 4000k. Bean angle avaiable 18°, 26° and 36°

XAL

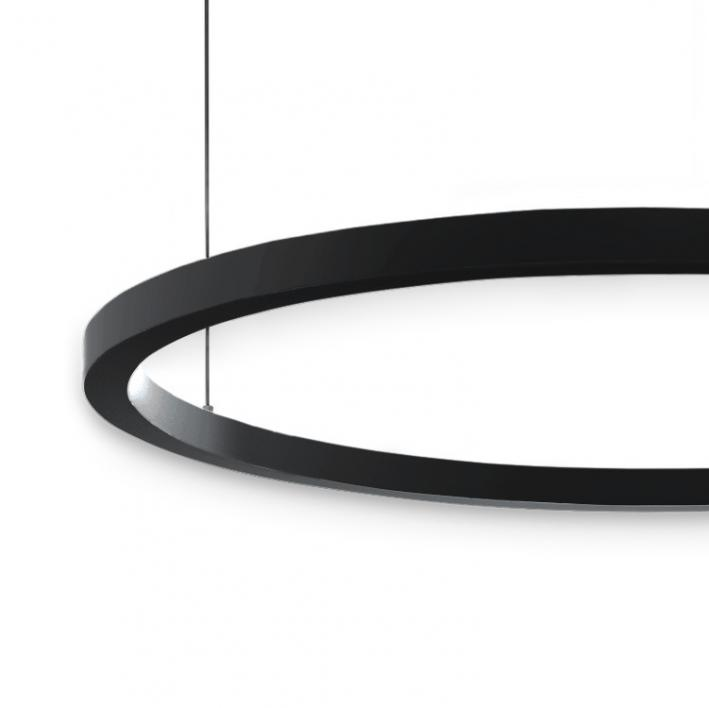

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

Luminaire housing made of extruded aluminium profile; light-tight end caps in aluminium; angular design; surface jet black powder coated; luminaire, ball proof version to DIN 18032-3 and DIN 57710 part 13 / VDE 0710 part 13; not suitable for indoor tennis centers (or halls with comparable ball sizes); LED light inset consisting of highly reflective lacquered aluminium for improved thermal management

DIMENSION : L1000*W60*H80MM
