UNILAMP

SPOTLIGHT
OUTDOOR LIGHTING

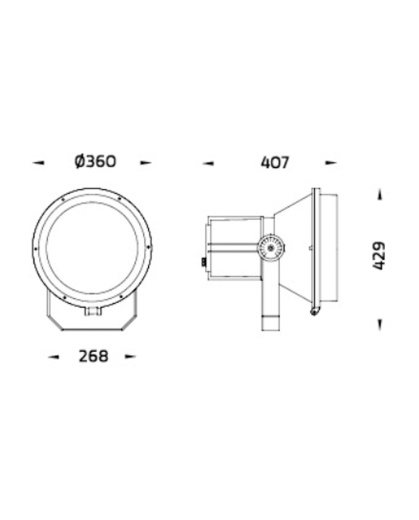

CANNON 2021-7-3-887-06

By its very name CANNON has a robust construction and is suitable in applications that require high lighting levels from medium to long distance. A wide range of mounting accessories including ground mount base, pole top mount, and pole/ wall mount arm is available. This luminaire utilizes a high power COB LED in three steps SDCM. CANNON is available in two sizes with mid-narrow, mid-wide and very wide beam angle in 2700K, 3000K and 4000K. The pure aluminium reflector used is designed by high-end lighting engineering software. The integrated aiming scale allows the lighting designer to have confidence that the light distribution will be exact on any surface. CANNON is suitable to light up medium size to large size objects or areas such as billboards, building facades, public parks, pedestrian, statues and public landmarks.

Specification

Power
68W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
7500LM
Finishing
WHITE
IP Rating
IP65
Color Rendering
CRI >80
Driver
ON/OFF DRIVER

See more

LINEALIGHT

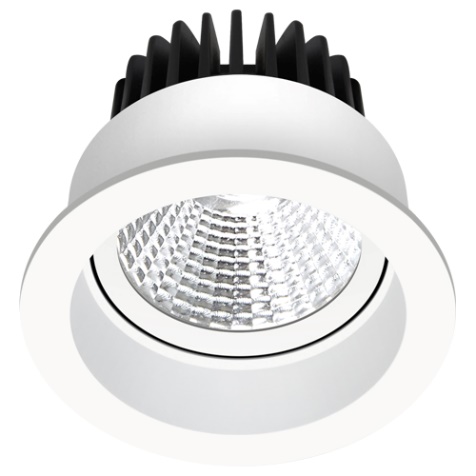

RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 20 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
WALLWASHER
OUTDOOR LIGHTING

High power range of wall-washer led luminaire series with wide rage of beam distributions. Unique ROLEDs Digital. Photometric system options. Precise color adjustment through each channel to define specialized color. The ingress protection degree is IP66.

FORMALIGHTING
FRAME PROJECTOR
INDOOR LIGHTING

Advanced, multi-functional LED surface mounted projector, tiltable vertically 0°-90° and rotatable horizontally 350°. With built-in bidirectional zooming lens with sharpness adjustability, and lens rotation. Adjustable shutters to re-frame the beam to the desired size and shape (circle, square/rectangle, or irregular four-sided shapes). Compatible with Gobo insertion for logo. High-precision optics for sharp outlines and a high degree of lighting uniformity.

SIMES
SURFACE MOUNTED DOWNLIGHT
OUTDOOR LIGHTING

Surface mount ceiling luminaire made of aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. IP66
