Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.

Ceiling / Suspension mount round pendant light, housing made of ABS material. Fixture finishing available in Black OR White.

The rimless luminaire PI² WHITELINE from the familiy PI² consists of white painted steel. The luminaire with direct illumination and corresponds IP20 at protection class 1. The ballast is integrated and allows for an operation with 220-240V (50/60Hz). PI² WHITELINE (# 11242) is dimmable via BUS. The rimless luminaire PI² WHITELINE from the familiy PI² consists of white painted steel. The luminaire with direct illumination and corresponds IP20 at protection class 1. The ballast is integrated and allows for an operation with 220-240V (50/60Hz). PI² WHITELINE (# 11242) is dimmable via BUS.

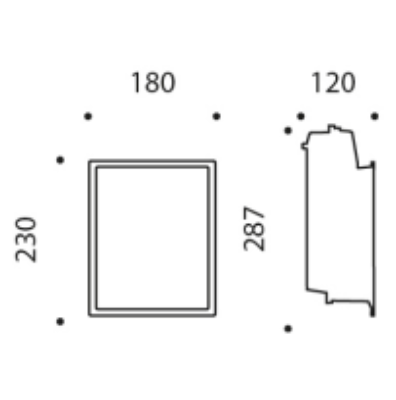

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 27°, luminous flux: 510 lm, wattage: 10 W, delivered lumens 51 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,012 m², dimensions: Ø 123 mm, width 87 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
