Product Detail | Bloxlimited

SPARK

LINEAR DOWNLIGHT

INDOOR LIGHTING

SPK1612-15W-40°

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.

Specification

Power

15W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1096LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 30 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

ACCLAIM

FLOODLIGHT

OUTDOOR LIGHTING

Dyna Drum HO White is a high output, outdoor rated, white color LED floodlight. It features an internal 100-277VAC power supply, onboard DMX+RDM driver, and each unit carries Acclaim’s Aria wireless DMX technology inside. The optical system and high power LED provide exceptional output and efficacy. It comes with a narrow 5º beam standard, with optional quick-change spread lenses for wider applications. It is ideal for facade lighting applications and as an area floodlight.

LIGHTFORMS

WALL LIGHT

INDOOR LIGHTING

Cygnus came about due to demand for a track fitting following the style and theme of all our designs, ie: simple, strong and well finished. Cygnus utilises the LEDil reflectors for a perfect and reliable light shape. The extruded aluminium housing and is available in our full range of finishes. Cygnus is supplied as standard with a Tridonic in track adapter, so the control gear is integral. Other adapters are available, but should be specified to the factory.

LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

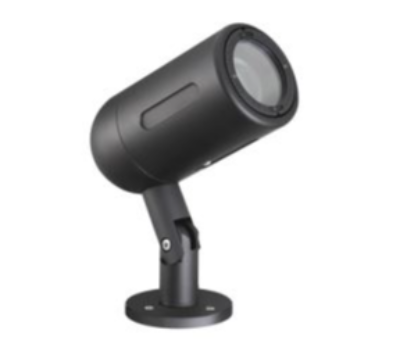

Projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); Power consumption: 20W; Power supply: 24Vdc; Lumen output at source: 1021 lm, R: 146 lm G: 329 lm B: 117 lm W: 429 lm (4000K); Delivered lumen output: 656 lm, R: 101 lm G: 204 lm B: 75 lm W: 276 lm (4000K, 20°); 3 groups of 4 power LEDs, 50 000h L85 B10 (Ta 25°C); LED colour: RGBW; Optics: 61°
