FLOS

Pivot 1.7 code: CP17020FKA-1/projector for outdoor applications/surface mounted (ceiling, wall, ground, spike, strap)

Power consumption: 7W/Power supply: 24Vdc/Lumen output at source: 657 lm (3000K, 7W, CRI 80)/Delivered lumen output: 463 lm (3000K, 34°, 7W, CRI 80)/1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)/LED colour: 2700K/Optics: 54°: optical system consisting of a deep-set, high-efficiency TIR lens/CRI Colour Rendering Index: 80/Operating temperature: -20°C — +45°C/Glow wire test: 960°/Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006/Appliance class: class III/Weight: 400 g/Dimensions: Ø40x75 mm/Energy efficiency class: F (light source) in accordance with EU 2019/2015

IP67 flexible 24 V linear LED strip up to 7.5 m in length. Polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gazes and protection against abrasion. White lower casing for higher efficiency (better light extraction). Delivered with 200 mm IP67 mini connectors on both ends. Constant Voltage LED strip with 62.5 mm and a small LED pitch of 8.93 mm the first choice for outdoor applications with a direct top view or indirect lighting with low construction depths – with perfectly homogeneous light. Assembled using state of the art automated Reel to Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

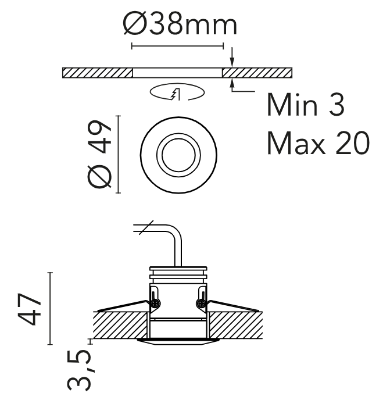

Recessed adjustable downlight luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

For grazing light with spread lens 15°x 32° with High CRI LED 3 different brightness by choosing 350mA, 500mA or 700mA C.C driver Adjustable bracket and louver options available
