LINEALIGHT

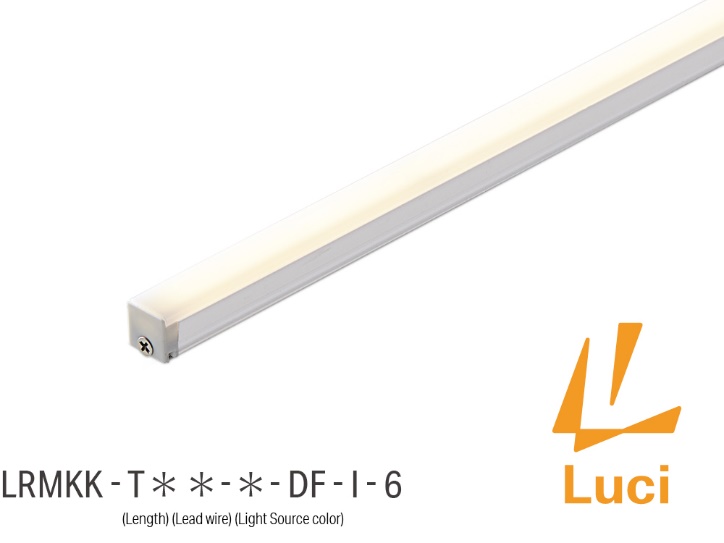

Surface mount linear light combine with maximum visual comfort with impressive efficiency. All versions are dimmable or conveniently controllable via DALI, allowing for flexible adaptation to different lighting moods. Precisely engineered optics ensure excellent glare control and uniform, clearly defined light distribution. Avail in 3 lengths, they combine variable lighting with a clear design language and are perfectly suited for sophisticated interiors where technical requirement.

Miniaturized design meets architectural scales: Its exceptional integration makes ADONIS ARCHITECTURAL an excellent choice for grazing applications and direct illumination on façades and ceilings. A multitude of options include several power levels and color temperatures plus a variety of light engines ranging from static white to RGBW, as well as 10°, 30° or 60° and opal optics to choose from. Polyurethane is utilized in ADONIS ARCHITECTURAL to make it more resistant to impact from salt water UV-light and solvents. High protection against vandalism thanks to a robust, powder-coated aluminum profile with an IK10 certification.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, frosted glass with diffuse light distribution as orientation luminaire , for loads up to max. 2000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 2 stainless steel screws, with polypropylene recess housing, cable gland: M20 (stainless steel), connecting terminal: 3 pole, with 1 m cable H07RN‑F3G1, integral potted driver (AC/DC), CRI > 85, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 108° / 112°, luminous flux: 566 lm, wattage: 19 W, delivered lumens 30 lm/W, protection type IP67, protection class I, impact resistance IK10, dimensions (L×H×W): 647 × 40 × 84 mm, weight 3.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Direct light linear luminaire, designed to use monochrome LED lamps. The product can be installed using pairs of arms, ceiling/ground/wall-mounting bases, stakes, and pendant rods and cables (to be ordered separately). The body is made of extruded aluminium and includes die-cast aluminium end caps with 50/60 Shore A silicone seals.
