LINEALUCE_EL43

Direct light luminaire, designed to use monochrome LED lamps, DALI 48Vdc dimmable with searching and addressing function. Ceiling-, wall- or surfacemounted. Consists of a body and supports for installation, to be ordered separately. The body is made of extruded aluminium and includes die-cast aluminium end caps with 50/60 Shore A silicone seals. It is subjected to a multistep, pretreatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nanostructured silane layer).

Specification

Power
35.6W/M
Color Temperature
2700K
Light Source Type
LED
Lumen Output
3081LM/M
Finishing
STEEL
IP Rating
IP66
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

CUSTOMIZED
CEILING LIGHT
INDOOR LIGHTING

FOR BIG C PATTAYA3 (BIG C STORE)

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

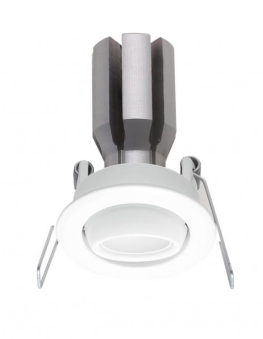

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.07 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
IGUZZINI
LINEAR DOWNLIGHT
INDOOR LIGHTING
Recessed luminaire consisting of a lamp device, 9-cell emission raster and operating components. Version for UGR < 19 controlled luminance lighting - in compliance with the standard for use in environments with video monitors. LED lamps with high color rendering index. Main body made of extruded aluminium - anodised finish - cast zamak end caps - natural finish. Polycarbonate LED lamp support. Steel wire fixing springs. The optical system consists of a translucent textured methacrylate raster, created with a catadioptric system (patented Opti Beam Diamond optic) - with no galvanic treatments - combined with a gloss finish PET cover.
SPARK
SUSPENDED DOWNLIGHT
INDOOR LIGHTING

Suspended mount downlight, luminaire body made of aluminium housing with white powder coated finish. Come with 1m hanging rod. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.
