LOUIS POULSEN

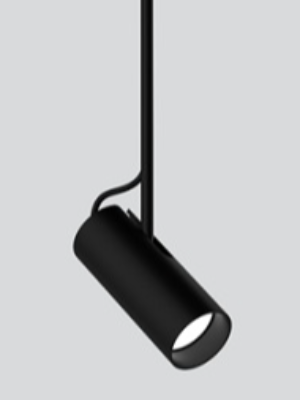

Decorative suspended luminaire in aluminium; surface black powder coated; height adjustable U-profile pendant rod suspension (black) 1500mm, feed 2000mm (1500mm in U-profile), incl. ceiling mounting ring + hook (black) for multiple positioning of the luminaire in the room; spotlight head 265° rotatable and 90° tiltable; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; incl. high quality lens system; precise radiation characteristic with 25° beam; degree of protection IP20; PC2 220-240V; canopy for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 9-25 mm; special mounting tool for easy installation of the trimless housing available as an accessory; incl. DALI-2 converter; external converter for ceiling insertion; light source not replaceable; control gear replaceable by an authorized professional.

One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable

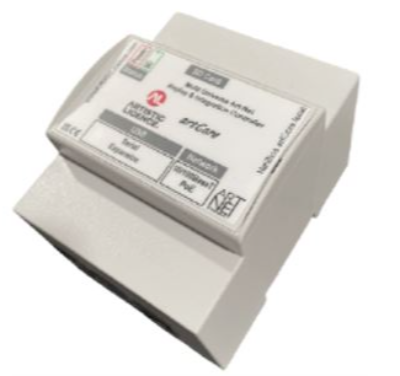

ArtCore is a compact, PoE-powered, Art-Net controller and integration gateway enabling larger systems to be assembled and intuitive lighting control achieved. Providing centralised lighting control, automation and system integration capabilities, artCore delivers solutions of scale for environments requiring robust and reliable lighting control. With its companion app or an artPlay touchscreen, artCore provides four universes of control (2048 channels) with static and dynamic.

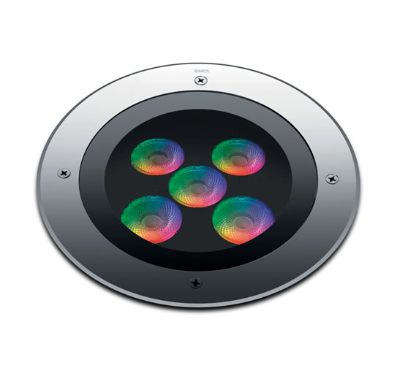

LUMINAIRE TYPE:Inground walk over fitting. Recessing depth 245 mm. IP rating IP 67

"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. 2 mm thick front trim in Stainless Steel - Grade AISI 316L with 2,5-3% molybdenum content. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Mechanical resistance IK 09 Maximum load capacity 1020 Kg
