CDN LIGHTING

RECESSED DOWNLIGHT
INDOOR LIGHTING
HS6070 9W15D


Specification

Power
9W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
733LM
Finishing
ALUMINUM
IP Rating
IP20
Color Rendering
CRI>95
Driver

See more

LUCENT
FOOT LIGHT
OUTDOOR LIGHTING

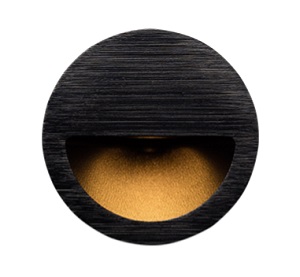

40mm (1.57”) overall diameter. Fully recessed step and floor marker with 90° angle and asymmetric beam for interior and exterior installation. IP66 rated fixture. Family of matching products also available. Required depth depending on installation method. DIMENSION : Ø36*40MM

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING

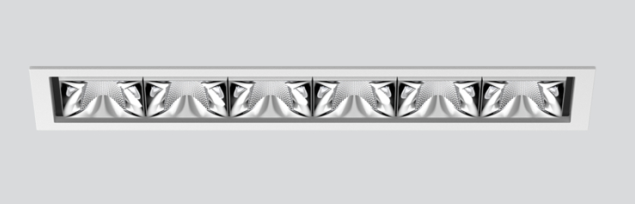

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with six flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energyefficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
HESS
POLE LIGHT
OUTDOOR LIGHTING
Steel pole, galvanised inside and outside. Conical design. Height from ground level optionally 7000mm. Pole Ø at the bottom 168mm. Embedded base with 2 openings for cable entry, optionally with square flange plate. Separate embedded base on request. With inspection-door and C-rail for fuse-box. When equipped with ARINI light +, additional junction box for wiring of control leads. Arrangement of luminaire heads either single-sided, two-sided (180° shifted) or in 360° design. RAL Pearl-Metallic on request
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission recessed downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of technopolymer and features a white finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP20.
