SPK-XTD9-03

Recessed linear downlight made of die cast aluminium housing come with spring clip mounting. Various color temperature and beam angle upon request. Suitable for Indoor and Outdoor application. IP54

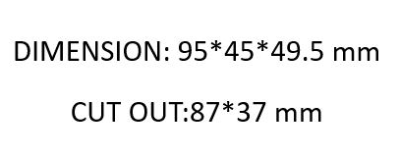

CUT-OUT 87*37MM

Specification

Power
8W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
560LM
Finishing
BLACK
IP Rating
IP54
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING
Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.
ERCO
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed housing: metal, black, with connection cable L 850mm. Flood- lights: cast aluminium, white (RAL9002) powder-coated. 0°-90° tilt. Flush cas- sette: polymer, white.

FLOS
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Eclectic Ø90. Adjustable Downlight (40º tilt, 360º rotation). “Cone” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 41º cut-off angle. IP20 water tightness (for IP54, please ask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts.

NEKO
SURFACE LINEAR LIGHT
INDOOR LIGHTING

Surface-mounted LED luminaire with direct beam made of high-quality extruded aluminium profile; black powder-coating finish – textured matt (RAL 9005); ON-OFF Driver is integrated into the luminaire housing; System Power (Total power consumption) 30W – Low Power; Dimensions of the profile channel (LxWxH): 2531mm x 50mm x 80.5mm; luminaire's weight is approximately 5200g; CCT 3000K with a System Luminous Flux of 3202lm; decent color rendering at an index of CRI>80; Binning initial <= MacAdam 3; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient LUMINUS LED Chips of the latest generation; 5 years warranty; diffusor made of Polymethylmethacrylate (PMMA) clear with microprismatic plate inserted for lower luminance (UGR<19); degree of housing protection IP20; RG<1 (EN62471); protection class I
