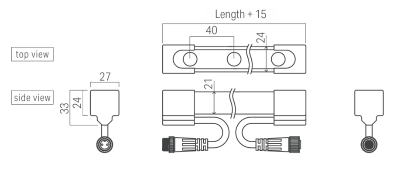

AKIN DFQ_3D is a single side illuminated dot-free strip light with 11mm illuminated width. It can be top bended (R=50 mm) and side bended (R=200 mm), ideally for double curve applications. Compared to traditional dotted LED strips, dot-free LED strips are more elegant especially for high reflective surface. The milky silicone tube is coated with anti-dust coating that prevents dust accumulation and keep it super easy to be cleaned up.

Protection class IP68 – up to 5m water depth. Protection class IP69 - protection against high pressure and high jet water temperatures. Entirely made of stainless steel 316Ti. Round attachment cover, made of stainless steel 316Ti, height 3 mm. POW-LED cold white, warm white, neutral white. POW-LED blue. Multichip POW-LED RGB. Multichip POW-LED RGB-W. Multichip POW-LED Dynamic white. Operating mode: constant current. Rotationally symmetric light distribution. Cable gland M16x1,5. Constant-current power source/RGB controller external. Installation housing made of stainless steel 316Ti with 1.5 m cable protection tube and connection socket (order separately). Supplied with lamp and 3 m of underwater cable.

Monocube are floodlights with very compact dimensions and minimalist design that blend discretely into the architecture. The luminaire housings have a smooth surface and are therefore easy to clean and to maintain. Optical film is available as an accessory in order to adapt the light distributions to the exact requirements of a lighting project. Monocube floodlights feature integral LED drivers and can be easily connected to mains voltage power supply. The sizes 3 and 4 can be equipped with Casambi ready drivers and be dimmed via Bluetooth Low Energy technology.

Decorative elements and reflector in solid bronze are treated with a transparent protective layer that maintains the color and ensures quality and durability. Die-cast EN AB-47100 aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 06. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
