ZERO COMPASSO 66 WW_ 96E6BC22-9030WWD010

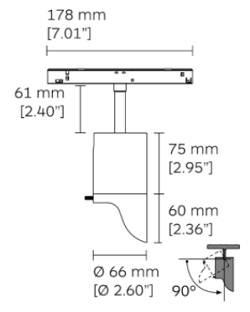

EVO track mounted Zero Compasso wallwasher, available in three sizes (Ø42, Ø66 and Ø100mm) versatile aiming angle tiltable vertically 0°-90° and rotatable horizontally 360°. Available in regular and long arm versions for deep recessed and pendant EVO track. Perfect for museums and galleries applications. Wallwashing with high uniformity can be used to illuminate artwork and sculptures. Vertical uniformity creates a wide and distinguished spatial impression by brightening the entire height of the wall. DALI dimmable fixtures can also be controlled by Casambi DALI Broadcast device.

Specification

Power
13.4W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
766LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

LUCI
LED STRIP
INDOOR LIGHTING
New application lighting that fits into a corner Expands the range of design with two-sided luminescence 33mm to 1508mm, 60 length selections available and with shorter lead time
PROLICHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

Rotatability 350°, pivotability 30° · Series compatible with each other, uniform cutout diameter · Weight: 0.67 grams · 2 powder-coated color options · RAL colors on request · Dimmability depends on the ballast · Direct light colors: optionally 2700K, 3000K, 3500K or 4000K. · CRI > 90 · MacAdam: 3 · IP protection type IP65 · Height: 122 mm · Diameter: 108 mm

FLOS
RECESSED DOWNLIGHT
INDOOR LIGHTING

LED lighting module, with low glare, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Available in one-light versions and groups of two and four lights. Driver not included, the driver has to be directly connected to the embedding frames.

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a spot light distribution is composed of 12 powerled LEDs. The device body is made of uv resistant polycarbonate and features a transparent finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 0.39 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be wall lights, ceiling or floor-mounted with an outer casing, code 98843 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
