ACCLAIM

IP67 flexible 24 V linear LED strip up to 7.5 m in length. Polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gazes and protection against abrasion. White lower casing for higher efficiency (better light extraction). Delivered with 200 mm IP67 mini connectors on both ends. The first choice for homogeneous indirect outdoor or humid cove lighting and other non-directly viewed applications with medium luminaire-surface distance requiring IP67 ingress. Constant voltage LED strip with a step measurement of 125 mm and a small LED pitch of 17.86 mm. Assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

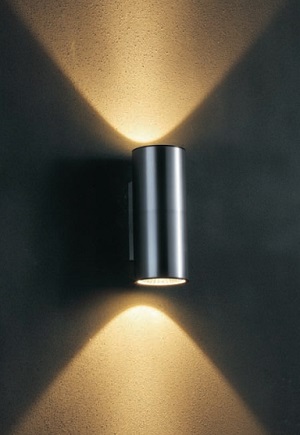

Double light emission outdoor wall-mounted luminaire, designed to use warm white LED lamps, with Up/Down light blade optic. For wall-mounting using the special steel plate. The luminaire consists of an optical assembly, rear base and plate for fixing to the wall. The optical assembly and rear base are made of die-cast aluminium alloy coated with liquid acrylic paint (grey finish) or textured liquid (white finish) with a high level of resistance to weather and UV rays. The wall plate is made of Aisi 304 stainless steel. Double light blade optic with two-component (acrylic and polycarbonate) lenses, joined to the optical assembly with silicone. Single stainless steel M14x1 cable gland and rubber outlet cable L=500mm. Double electronic circuit with warm white LED. Equipped with electronic ballast Vin 100-240V ac 50/60Hz. All external screws used are made of A2 stainless steel. The luminaire technical characteristics conform to EN60598-1 standards and particular requirements.

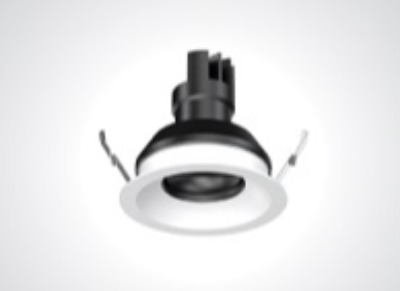

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 30 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Luminaire housing made of extruded aluminium profile; light tight final end caps made of aluminium; no visible screws; angular design; surface jet black powder coated; suspended luminaire with 1500mm cable suspension; with integrated toolless suspension height adjustment on the luminaire; spring clip attachment to the luminaire; freely positionable; incl. feed (black); lighting profile (end cover pre-assembled) available in advance for installation, microprismatic PMMA diffuser.
