XAL

RECESSED SPOTLIGHT
INDOOR LIGHTING

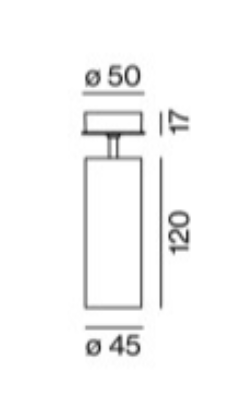

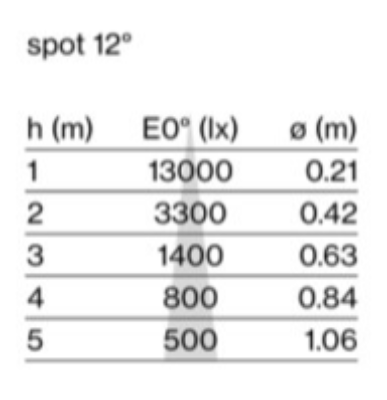

BO 45 SURFACE_049-6230418S 002-90720

Cylindrical spotlight in aluminium; surface black powder coated; 350° rotatable and 90° tiltable; with surface mounted housing; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency

Specification

Power
15W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
1140LM
Finishing
BLACK TRIM / BLACK REFLECTOR
IP Rating
IP20
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

SPARK
RECESSED MAGNETIC TRACK LINEAR
INDOOR LIGHTING

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely.

MEYER
SPOTLIGHT
OUTDOOR LIGHTING
Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket powder coated aluminum with tilt scale: 2 drilled holes Ø 7 mm, spacing 40 ‑ 60 mm, 1 centre hole Ø 21 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 22°, luminous flux: 1445 lm, wattage: 55 W, delivered lumens 26 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
LUCE & LIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING

Pivot 3.0

projector for outdoor applications; surface mounted (ceiling, wall, floor), surface mounted (ceiling, wall, ground, spike)

BEGA
UNDERWATER LIGHT
OUTDOOR LIGHTING
Underwater luminaire made of stainless steel intended solely for use underwater. Recomanded installation depth 400 to 700mm below the water surface.Direct or indirect contact with baser foreign metals via swimming pool water, tools, etc. must be prevented. For water in swimming pools and bathing pools in accordance with DIN 19643 and typical pool water temperatures (max. 40 °C), the luminaire can be used in water with a chloride ion concentration of up to 500 mg/l. The swimming pool luminaire is not suitable for brine pools, salt water pools or salt water electrolysis disinfection. IP68,IK08.
