XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
090-7L451C0021 090-7L4020B

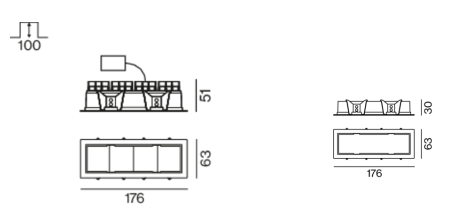

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due
to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness

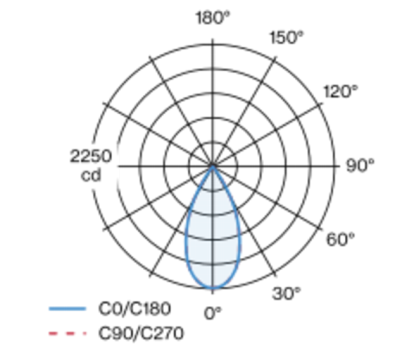

of 2-25 mm; equipped with four flood round light elements; symmetrical light distribution with precise radiation
characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome
reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤
3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning
initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient
high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non
dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed
separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
Specification
- Power
- 13.9W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 1380LM
- Finishing
- BLACK
- IP Rating
- IP20
- Color Rendering
- CRI >90
- Driver
- ON/OFF DRIVER
See more
