Products

LIGMAN

INGROUND FOOT LIGHT
OUTDOOR LIGHTING
MASK 2 MK-60259-8030-ND-05

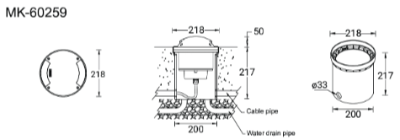

Die-cast aluminium housing and frame. Pre-treated before powder coating ensuring high corrosion resistance. Single cable entry, through wiring upon request. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC. Durable silicone rubber gasket. High-efficiency glass lens. Integral control gear. Recessing box in high-density polyethylene is included. To ensure efficient drainage, gravel must be used to a depth of 450 mm and width of 300 mm beneath the housing and should also be placed around luminaire. Suitable for drive-over with a maximum load of 4,000 kg for MK-60249, MK-60259, 2,000 kg for MK-60269, 1,000 kg for MK-60729. Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 10 km/h. Load is transferred by the housing to the foundation

Specification

Power
LED 8W
Color Temperature
3000K
Light Source Type
LED
Lumen Output

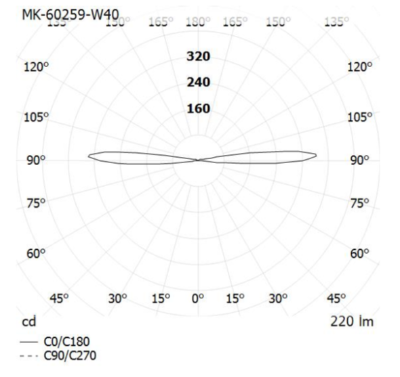

220LM
Finishing
MATT SILVER
IP Rating
IP67
Color Rendering
80
Driver
ON/OFF DRIVER

See more

IGUZZINI
RECESSED DOWNLIGHT
INDOOR LIGHTING

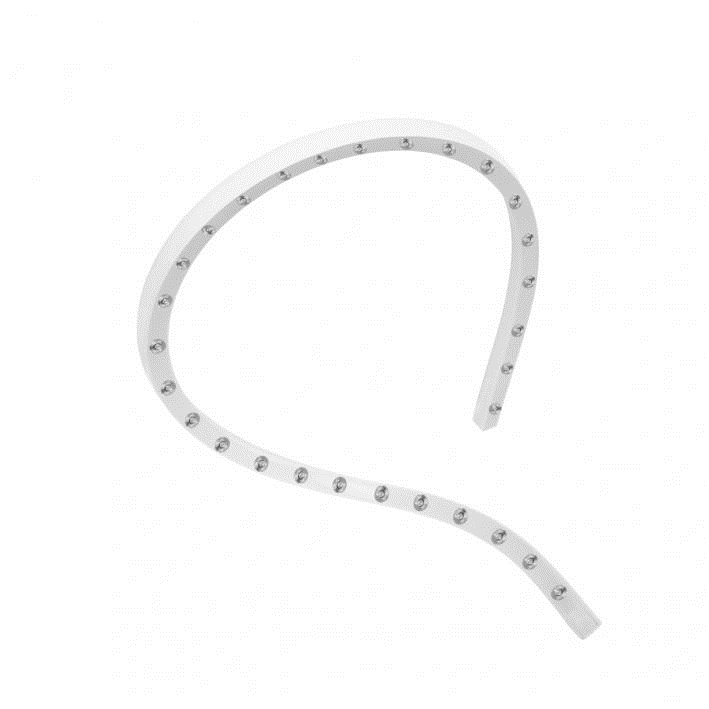

Miniaturized lighting fixture Laser Blade XS

Linear optical element with 5 cells (5 LEDs)

Recessed lighting fixture with a radiant surface in die-cast zama, complete

with springs for installation.

Frame version with a perimeter trim.

LED Single Chip High Power 2700K

LED Color Rendering Index -CRI90-

High-definition Opti Beam reflector in metallized thermoplastic material.


LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission ceiling lights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 36 powerled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7.4 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.1 m length. The device features protection class III and can be ceiling-mounted, with a 1432 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
UP/DOWN WALL LIGHT
INDOOR LIGHTING

Single emission uplights for outdoor application. The super warm white LED light source is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 490 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree i

DALITEK
CONTROL SYSTEM
CONTROL SYSTEM

220VAC single phase power input, 1 channel DALI DIN-Rail control signal output，1 channel switch output，20A/CH, each channel supports 64 DALI address（Support mixed use of DT6 and DT8）
