APEX

WALLWASHER

INDOOR LIGHTING

AR353_20D

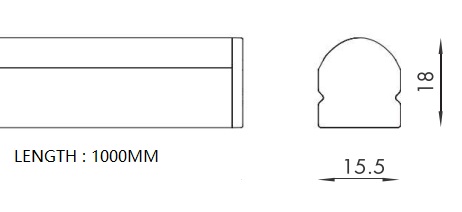

APEX WALL WASHER linear light, fixture dimension (H)18mm x (W)15.5mm x (L)1000mm. 80LEDs/M <3SCDM. CCT available from 2300K to 6000K. IP20

Specification

Power

9.6W/M

Color Temperature

2700K

Light Source Type

LED

Lumen Output

806LM/M

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

The Eclipse Round is a recessed, tilt behind, adjustable downlight with a Ø80mm bezel and features a beautifully sculpted anti-glare baffle inside a Ø32mm aperture. Unique, elegant small aperture. 360° Rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.010 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99764 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed black ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 65 x 65 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
