MEYER

FLOODLIGHT
OUTDOOR LIGHTING
SUPERLIGHT LED 3_8 887 056 019

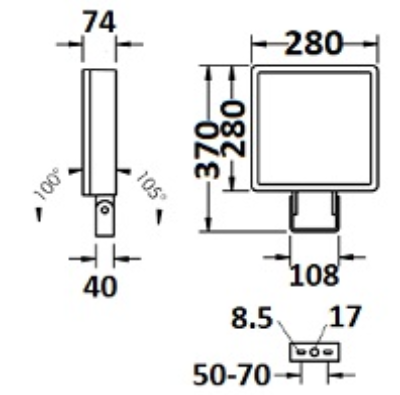

The luminaire housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: silver grey , all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket powder coated aluminum: 2 drilled holes Ø 8.5 mm, spacing 50‑70 mm, 1 centre hole Ø 17 mm, tilt range: 205°,

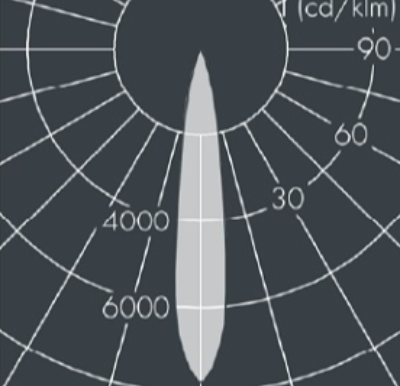

cable gland: M20, connecting terminal: 3 pole, efficient highgloss aluminum reflector in combination with hybrid lens fornarrow beam light distribution in shallow luminaire housing, DIMENSIONS: 280*75*280mm.

Specification

Power
87W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
8984LM
Finishing
GREY
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LUMASCAPE
UNDERWATER LIGHT
OUTDOOR LIGHTING


XAL
MAGNETIC TRACKLIGHT
INDOOR LIGHTING

Track light made of die-cast aluminium; powder coated; spotlight head rotates 360° and tilts 90°; choice of single lamp, double lamps or triple lamp; converter in the adapter; with optional high quality lens system with precise radiation characteristic; or high quality, aluminium, vapour deposition coated reflector with faceted design; precise radiation characteristics with different beam angles; good glare reduction due to recessed light point plane; optical attachments as accessories.

SIMES
FOOT LIGHT
OUTDOOR LIGHTING

Ghost is a lighting void that is obtained from a polypropylene housing anchored to the retaining panels before pouring the concrete. Ghost is composed of two elements: the housing and the lighting element. The housing is in polypropylene and it consists of two complementary parts: - A jig , which forms the housing, and is extracted together with the retaining panel after completing the casting and removing the anchor screws; - The housing that remains embedded inside the casting and houses the l

WE-EF
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Two cable entries. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering. Luminaire can be mounted for up or down lighting.
