Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 2 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 27°, luminous flux: 510 lm, wattage: 10 W, delivered lumens 51 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,012 m², dimensions: Ø 123 mm, width 87 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

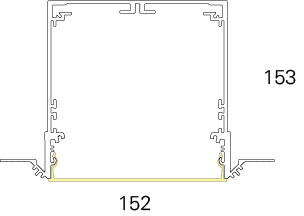

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.

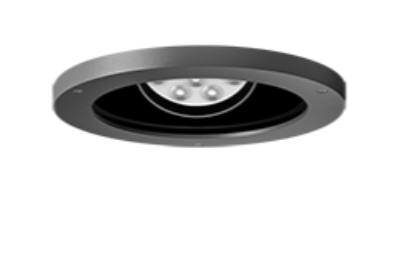

Die cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L front trim 2 mm thick. Toughened glass diffuser 12mm thick for COMPACT 200, 12mm thick for COMPACT 275, 15mm thick for COMPACT 360. Luminaire hard wired with single neoprene cable with cable gland. Stainless steel screws. Recessing box in polypropylene arranged for cable entries in all 4 sides. Silicone gaskets.

The Lighting Control Engine 4 turbo (LCE4 turbo) serves as a high-performance server for controlling large lighting projects, with pre-installed e:cue SYMPHOLIGHT and Lighting Application Suite (LAS). As a central control unit, this versatile light control server orchestrates all devices and lights within a project. The LCE4 turbo is equipped with even faster high-end components than the LCE4 to offer an additional performance boost, especially for large projects.
