XAL

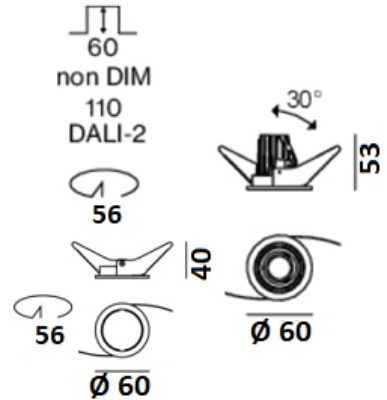

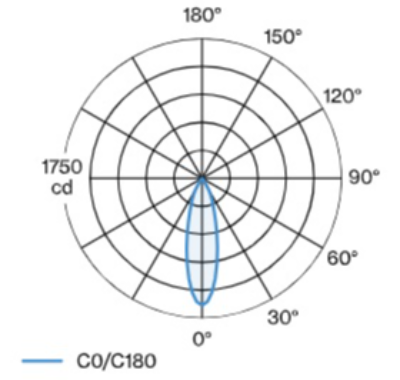

Round recessed luminaire with contact frame. Adjustable version that tilts by a maximum of 30°. The main swivel body is made ofdie-cast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector - wide flood optic (42°). Structure with die-cast aluminium external contact frame with a single white finish.

The pendant luminaire SIGN DIVA DANCER PLAY from the familiy SIGN consists of aluminum. With 3 powder coated options 15625 colour combinations can be achieved. The ballast is integrated and allows for an operation with 220-240V (50/60Hz). SIGN DIVA DANCER PLAY (# 410-4732) is dimmable via BUS. The luminaire with direct illumination and corresponds to protection class SK1 at IP20. Multiple applications possible due to comprehensive adjustment options. Rotability is 170°, additionally is SIGN DIVA DANCER PLAY adjustable by ±50° and 90° tiltable (see product drawing).

Cygnus came about due to demand for a track fitting following the style and theme of all our designs, ie: simple, strong and well finished. Cygnus utilises the LEDil reflectors for a perfect and reliable light shape. The extruded aluminium housing and is available in our full range of finishes. Cygnus is supplied as standard with a Tridonic in track adapter, so the control gear is integral. Other adapters are available, but should be specified to the factory.

Round recessed spotlight in die-cast aluminium; 1 lamp; surface matt silver; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows.
